To activate and set up the customized curves
1. Activate the DAC/TCG feature (see “Enabling the DAC/TCG Feature” on
page 154).
2. In the DAC/TCG dialog box, turn the adjustment knob to set the DAC/TCG
Mode to Custom.
3. Set the Curve Type to either Curve or Straight (polynomial or straight-line
segments).
4. Select the Curve no. to be used in addition to the main curve (see Figure 11-17 on
page 171).
5. For each warning curve, choose Curve <1–6> dB, and set the value compared to
the main curve.

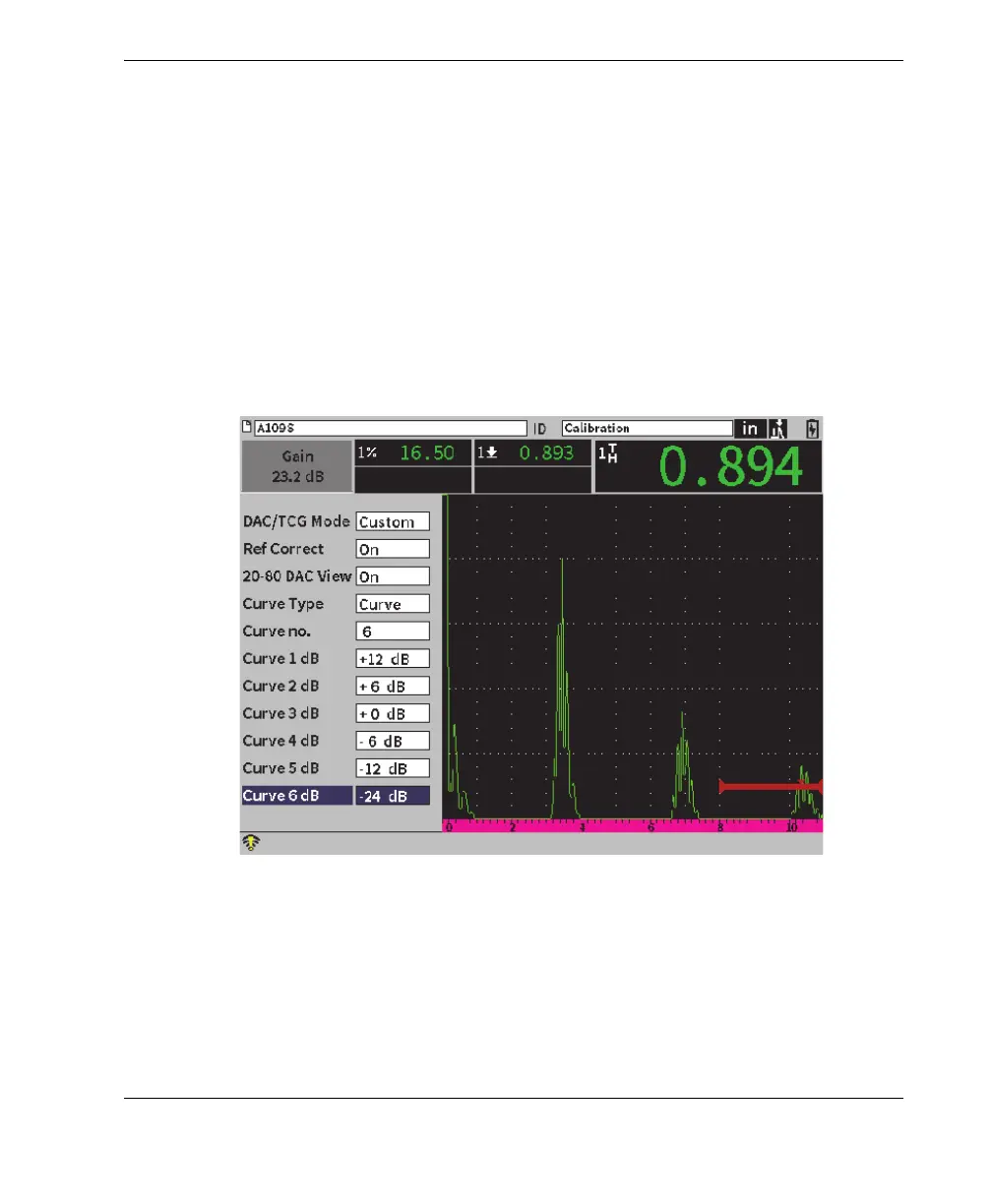

Figure 11-17 Custom DAC setup
The Custom DAC setup and functionality are the same as the Standard and ASME III
modes discussed earlier in this section. Figure 11-18 on page 172 shows a completed
Custom DAC setup.
