Save
This parameter saves the DAC curve to internal memory.
Auto XX%
This parameter allows you to return to DAC acquisition mode, providing access
to the Add, Delete, Erase, and Done functions. (Edit is not available in the TCG
view.)
While DAC/TCG is active, you have full control of the Range, Delay, and Zoom
settings. With this control, you can focus on areas of interest within the DAC setup.

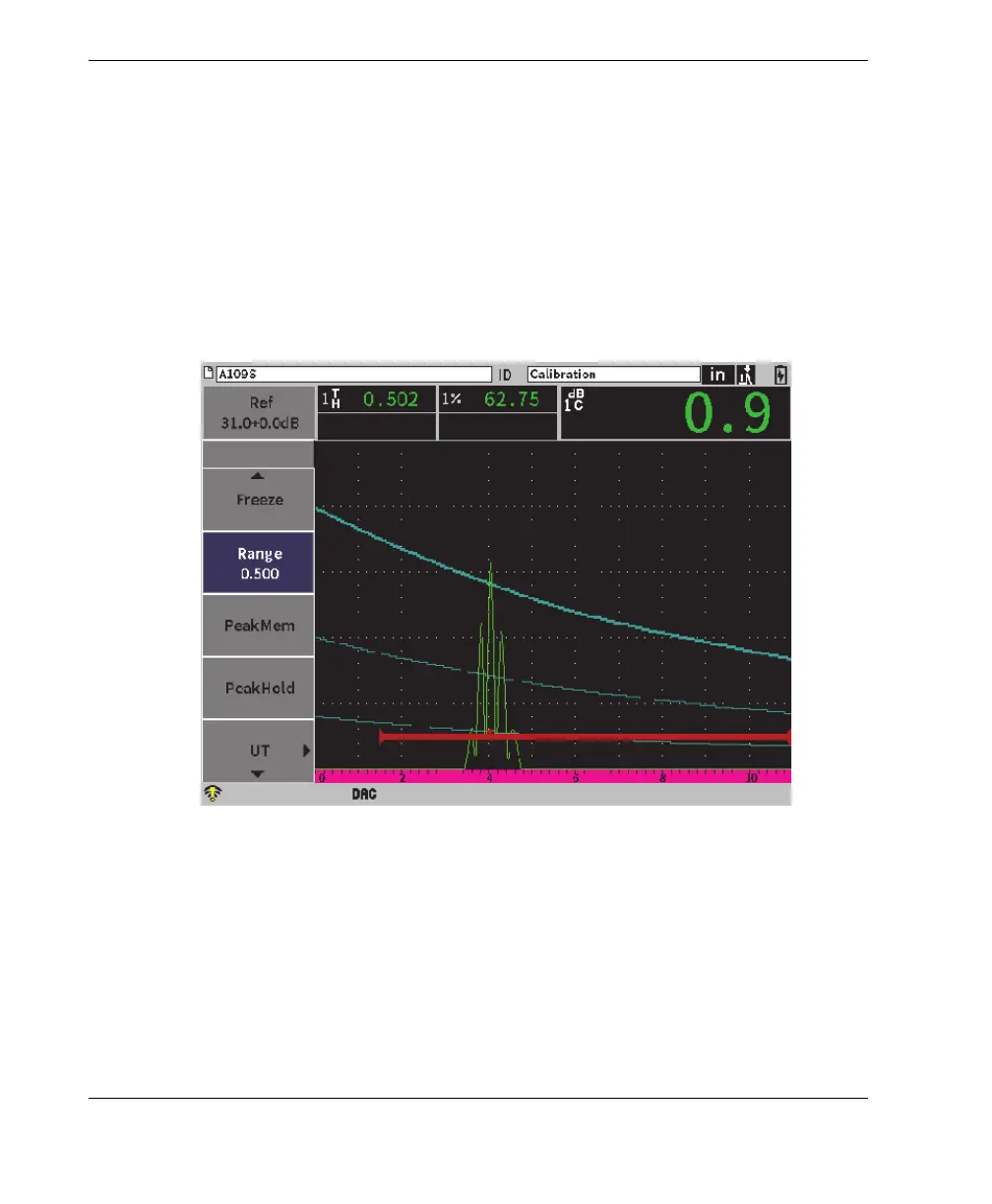

Figure 11-10 on page 164 shows a reduced range with delay.
Figure 11-10 A small range DAC
11.3.5 Gain Adjustment Options
The DAC/TCG mode includes three separate types of gain adjustment for each
DAC/TCG setup. These gain adjustments allow for better inspection precision, easy
manipulation of curves and live peak information, and transfer correction.
