DMTA-10084-01EN, Rev. 2, November 2018
Chapter 11
192
• A 60 Hz screen update rate
• Fully adjustable measurement gates
• Flaw detector gate measurement modes
• Traditional flaw detector gain linearity
• Supports automatic probe recognition for efficient instrument configuration.
Scanning Mode is similar to standard instrument operation, except that the
measurement boxes are fixed to more limited selections applicable to corrosion
measurement.
Scanning Mode Screen
The EPOCH 6LT screen in scanning mode is similar to the standard flaw detector
screen. The current mode and connected transducer are indicated in the message bar
at the bottom of the screen (see Figure 11-31 on page 192).

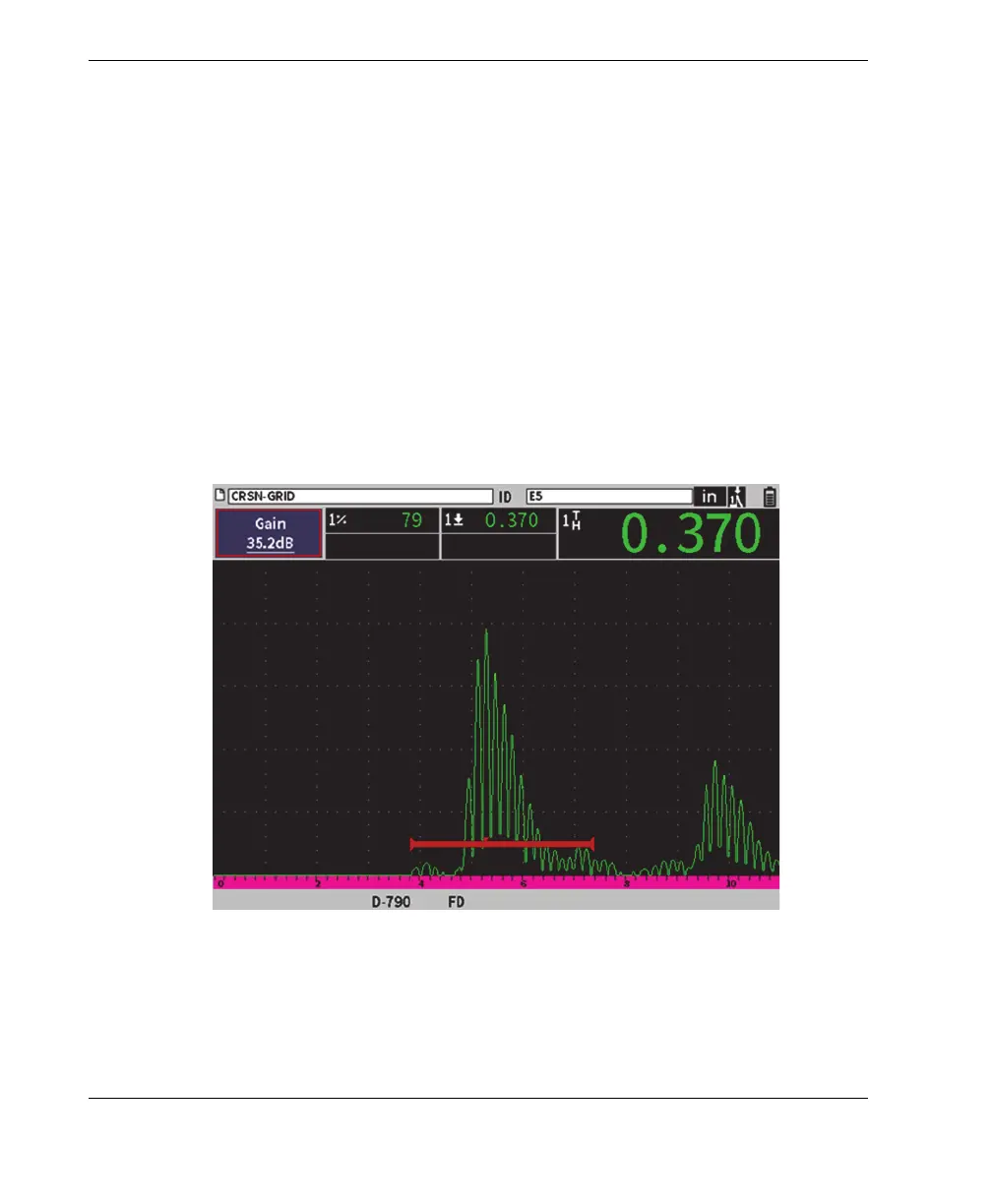

Figure 11-31 Scanning mode screen
