DMTA-10084-01EN, Rev. 2, November 2018
Software Features and Options
157
The DAC/TCG submenu should be displayed (see Figure 11-3 on page 157). If it is
not displayed, do the following:
a) Press the Tab key to display the sidebar menu.
b) Press the Tab key to highlight the DAC/TCG button, and then press the Enter
key to open the DAC/TCG submenu.

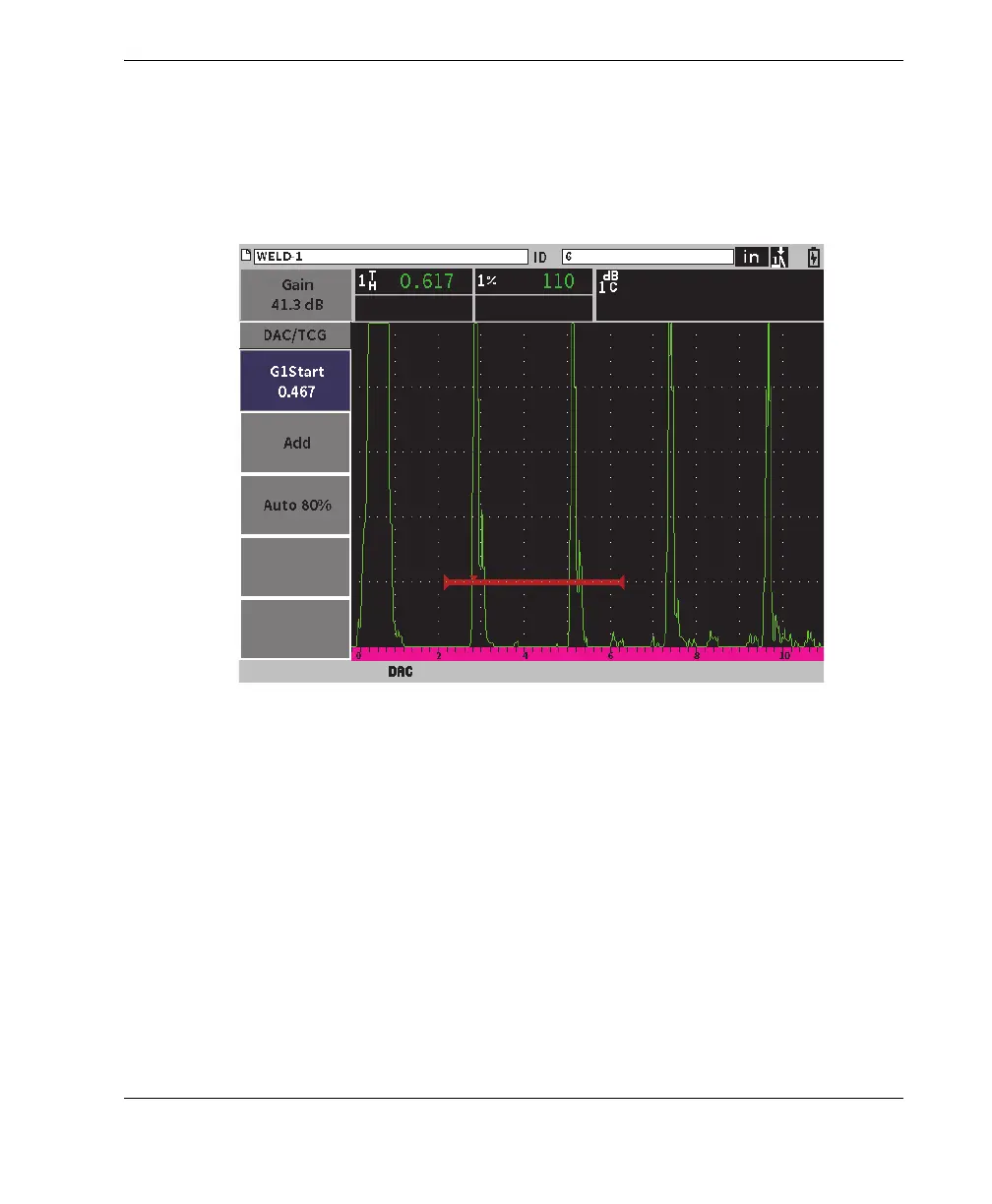

Figure 11-3 DAC/TCG sidebar submenu
To build a DAC curve
1. With the DAC/TCG submenu displayed, press the Enter key to select G1 Start,
and then turn the adjustment knob to center gate 1 over the first echo.
2. Press the Tab key to highlight Add, and then press the Enter key to add the first
point (see Figure 11-4 on page 158).
The G1Start button should now be highlighted.
