DMTA-10084-01EN, Rev. 2, November 2018
Chapter 11
162
3. Adjust the Angle, Thick, X Value, and CSC parameters as desired.

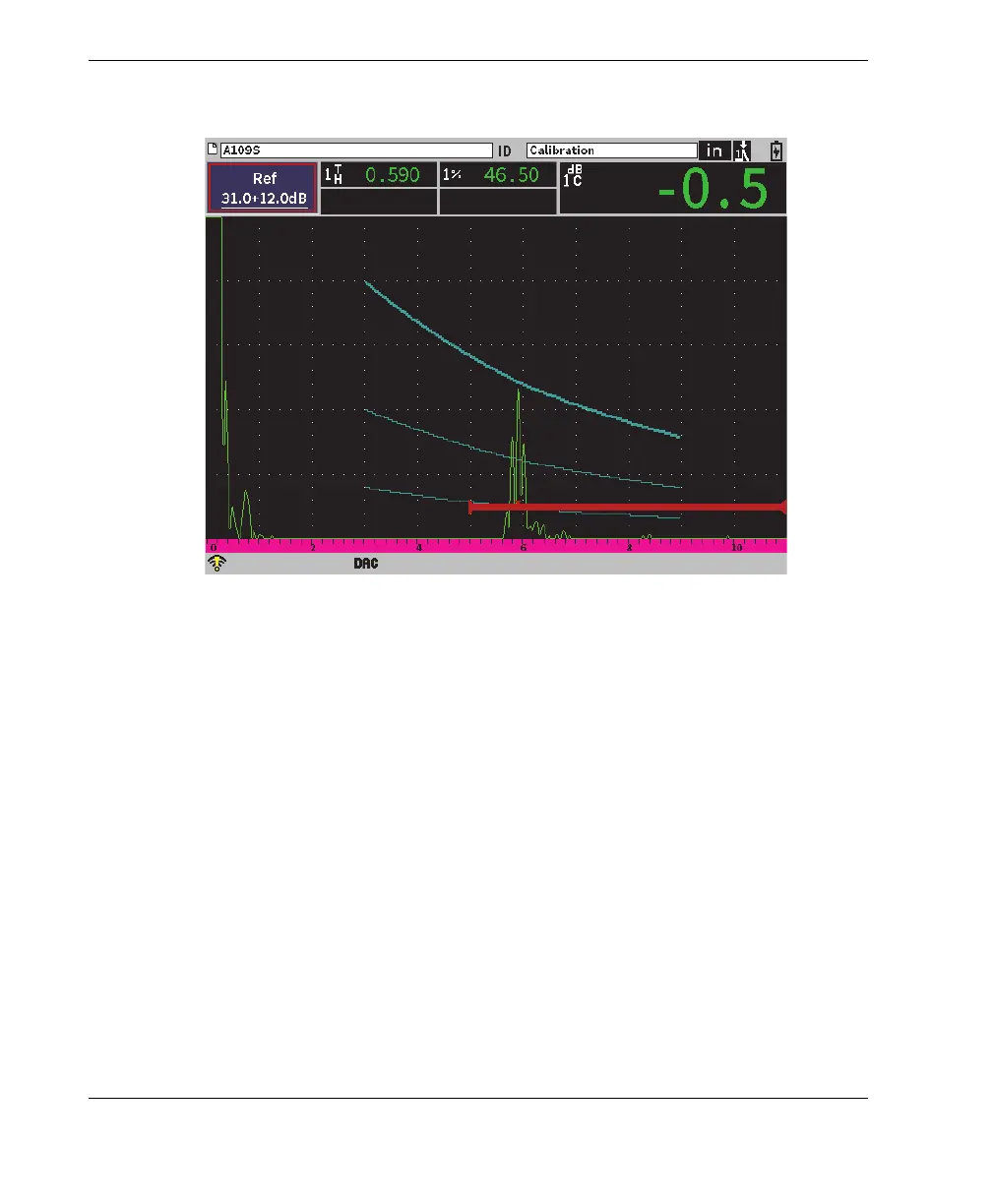

Figure 11-8 Completed DAC curve
11.3.4 DAC Inspection Mode
When the DAC curve is complete and the instrument is in inspection mode, the
DAC/TCG submenu displays a new set of parameters:
G1Start
The start position of gate 1 can be adjusted on the DAC/TCG submenu or the
Gate1 submenu.
DAC Gain
This adjustment enables you to manipulate the screen height/gain of both the
DAC/TCG curve and the echoes on screen. This allows for amplitude-to-curve
comparison at code compliant screen levels across the time base.
