View
This parameter enables you to toggle between the DAC curve acquired and the
corresponding TCG setup based on the DAC curve information (see Figure 11-9
on page 163).

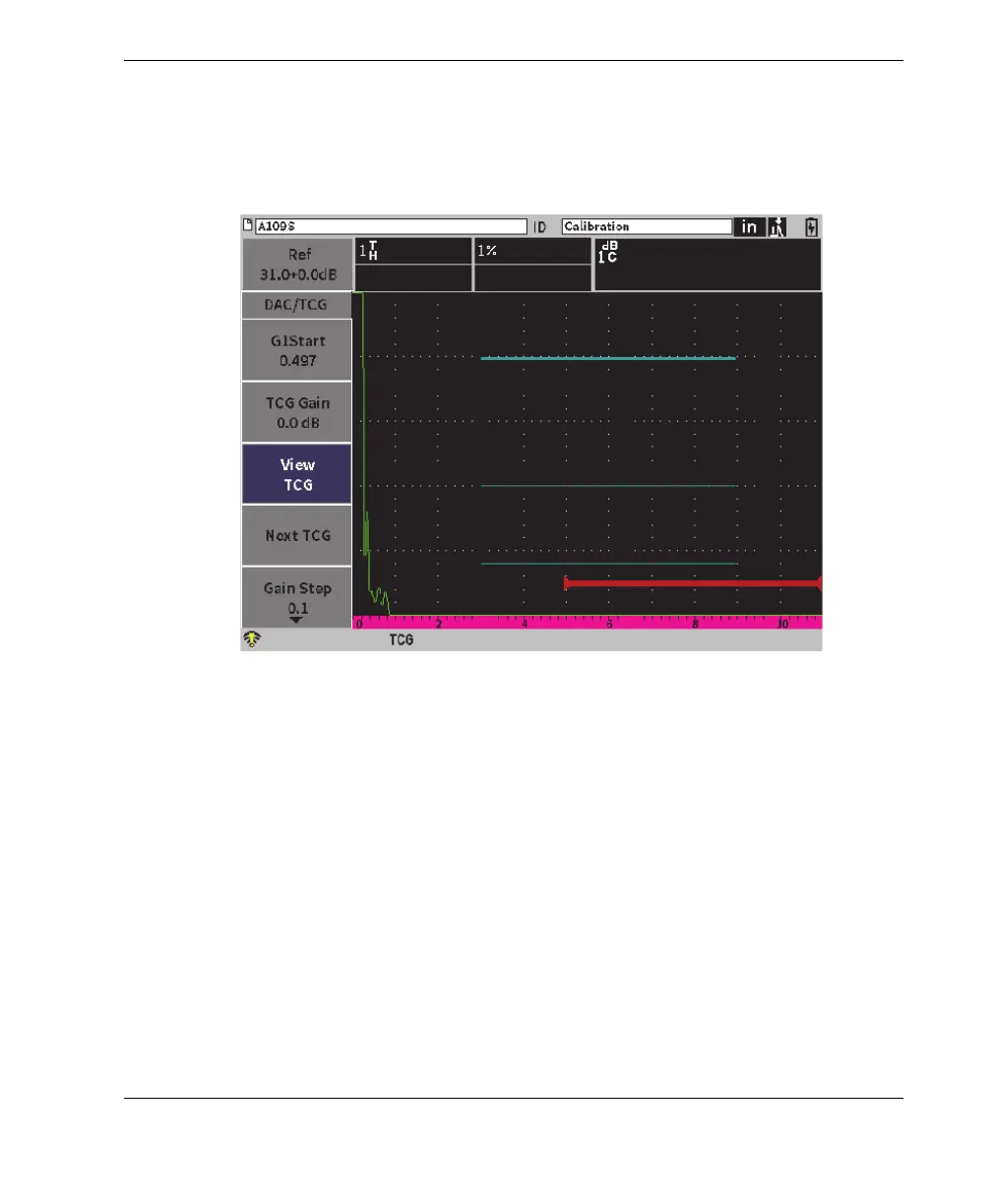

Figure 11-9 Completed DAC curves in TCG view mode
Next DAC
This parameter cycles through the available DAC curves (if more than one is
available) for amplitude comparison with on-screen echoes.
Gain Step
This parameter controls the steps by which Curve Gain is adjusted. Possible steps
are 0.1, 1.0, 2.0, 3.0, 6.0, and 12.0 dB.
Edit
This parameter enables you to return to DAC acquisition mode, providing access
to the Add, Delete, Erase, and Done functions. (Edit is not available in TCG
mode.)
To Next Page
