Olympus EPOCH 6LT - Setup Menu Icons; Table 1 Setup Menu Icon Actions

DMTA-10084-01EN, Rev. 2, November 2018
Chapter 3 18
To display the Setup menu
 When on the live A-scan display, press Shift ( ), and then Escape ( ).
3.1.1 Setup Menu Icons
A setup menu icon opens a dialog box or submenu of icons (see Table 1 on page 18).
The difference between a dialog box and a setup page is as follows (see Figure 3-2 on
page 19):
• A dialog box replaces the setup menu, but the live A-scan is still displayed and
active. You can access the Gain adjustment box and its shortcut menu, but you

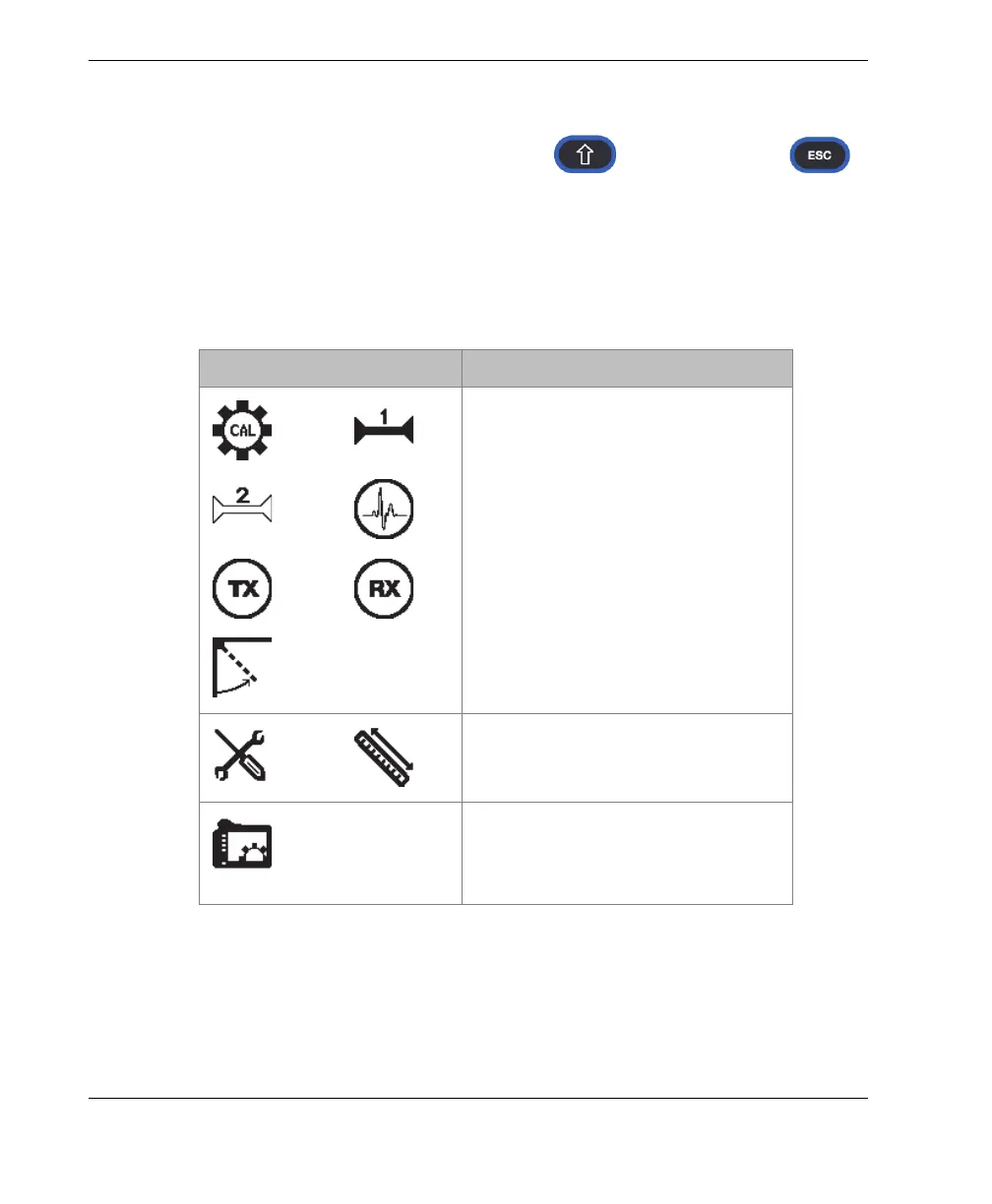

Table 1 Setup menu icon actions
Icon Description
Opens a dialog box.
Opens a submenu of icons. Each icon
opens a related dialog box.
Opens a submenu of icons. Each icon
opens a related setup page. For
detailed information on setup pages,
see “Setup Pages” on page 33.
