DMTA-10084-01EN, Rev. 2, November 2018

Inspection Mode

For detailed information on the Display and Measurement setup pages, see “Display

Setup Page” on page 41 and “Measurement Setup Page” on page 44.

4.2.3 Gain Adjustment Shortcut Menu

The gain adjustment shortcut menu contains buttons that enable you to set the

reference and scanning gain values (see Figure 4-8 on page 31).

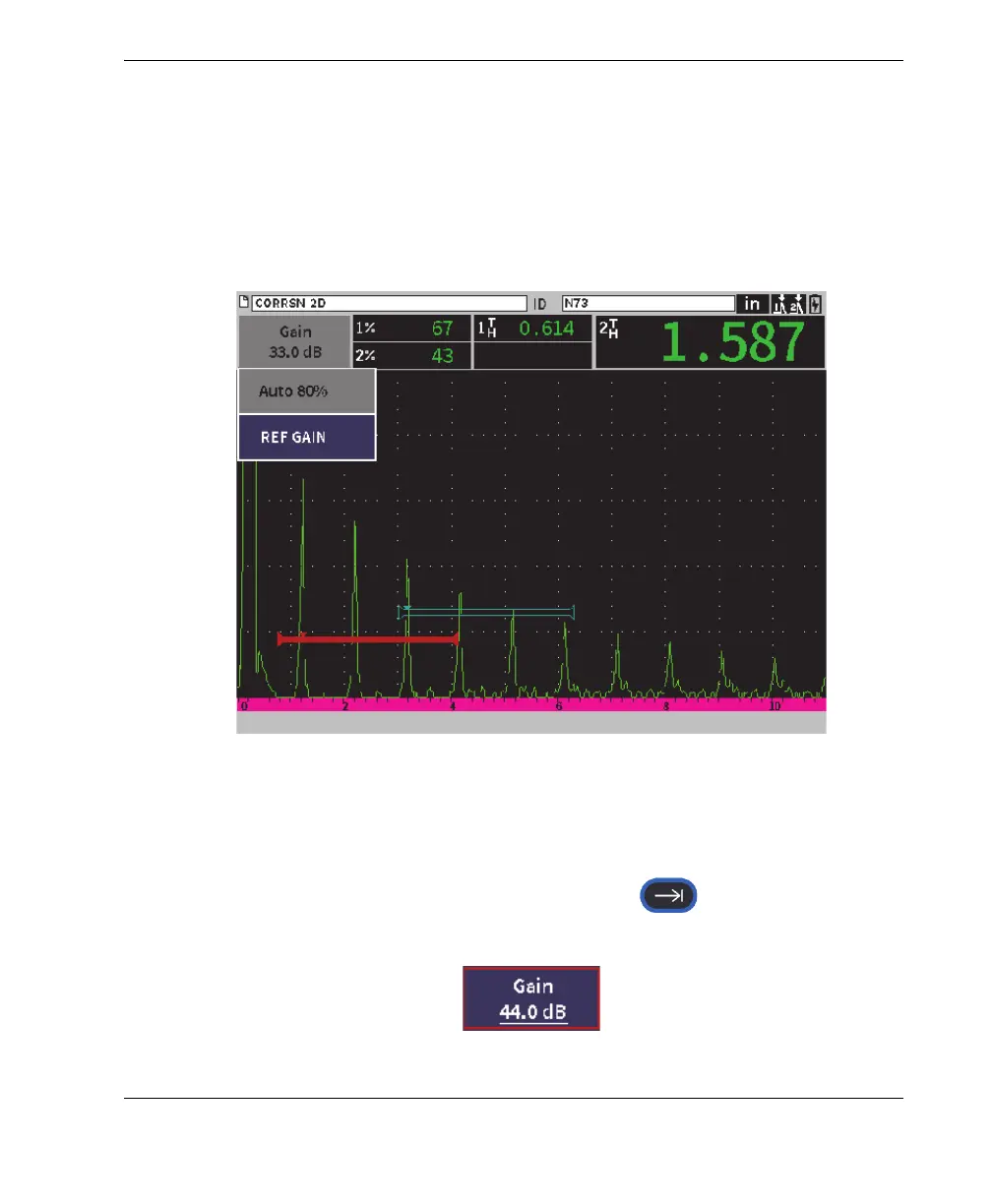

Figure 4-8 Gain adjustment shortcut menu

To use the gain adjustment shortcut menu

1. While on the live A-scan screen, press the Tab key ( ) to highlight the Gain

adjustment box, outlining it in red (see Figure 4-9 on page 31).

Figure 4-9 Highlighted Gain adjustment box
