DMTA-10084-01EN, Rev. 2, November 2018
Chapter 11
198

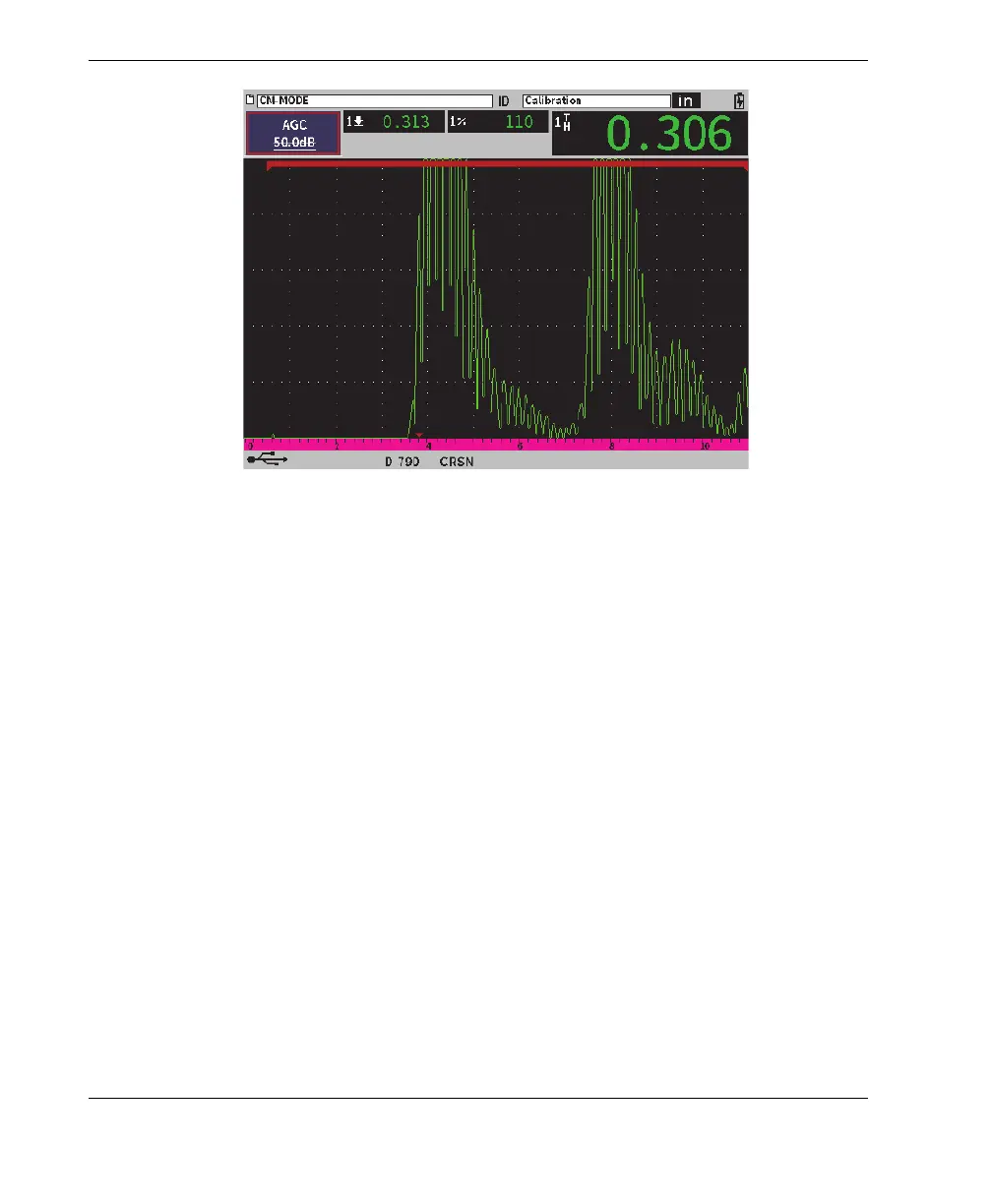

Figure 11-37 Incorrectly triggered measurement
To manually adjust the gain in precision mode
1. In the precision corrosion mode sidebar menu, press the Tab key to select the
ACG menu item.
2. Turn the adjustment knob to set AGC to Off (see Figure 11-38 on page 199).
