DMTA-10084-01EN, Rev. 2, November 2018
Chapter 11
158

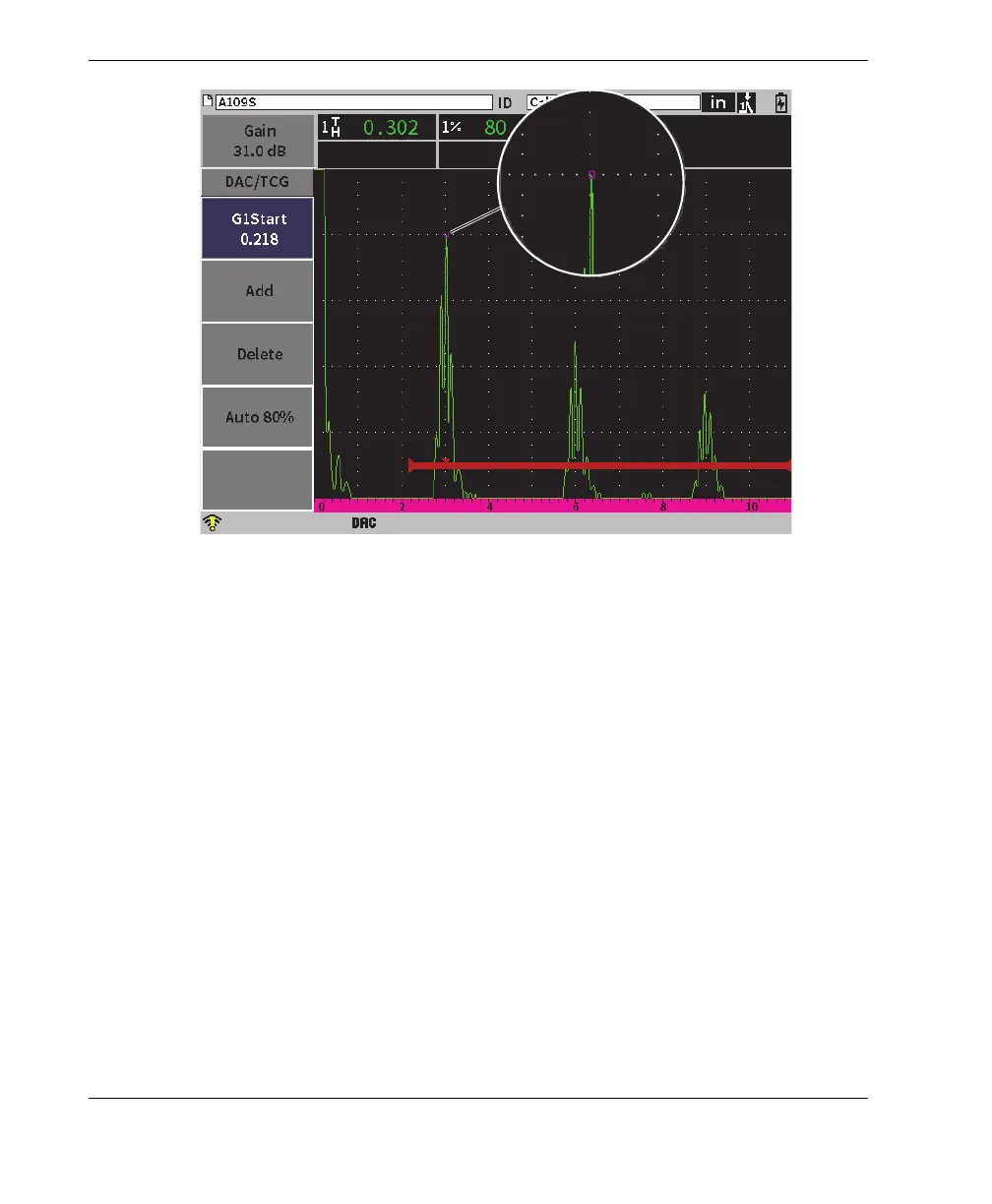

Figure 11-4 First DAC point
3. Turn the adjustment knob to move the gate trigger indicator to the next echo.
4. Press the Tab key to highlight AUTO 80%, and then press the Enter key to bring
the second echo to 80 % full-screen height. While building the DAC curve:
—The Delete button deletes the most recently captured DAC point
—The Erase button deletes all captured DAC points (the entire curve).
5. Press the Tab key to highlight the Add button, and then press the Enter key to add
the second point (see Figure 11-5 on page 159).
