DMTA-10084-01EN, Rev. 2, November 2018
Chapter 11
200

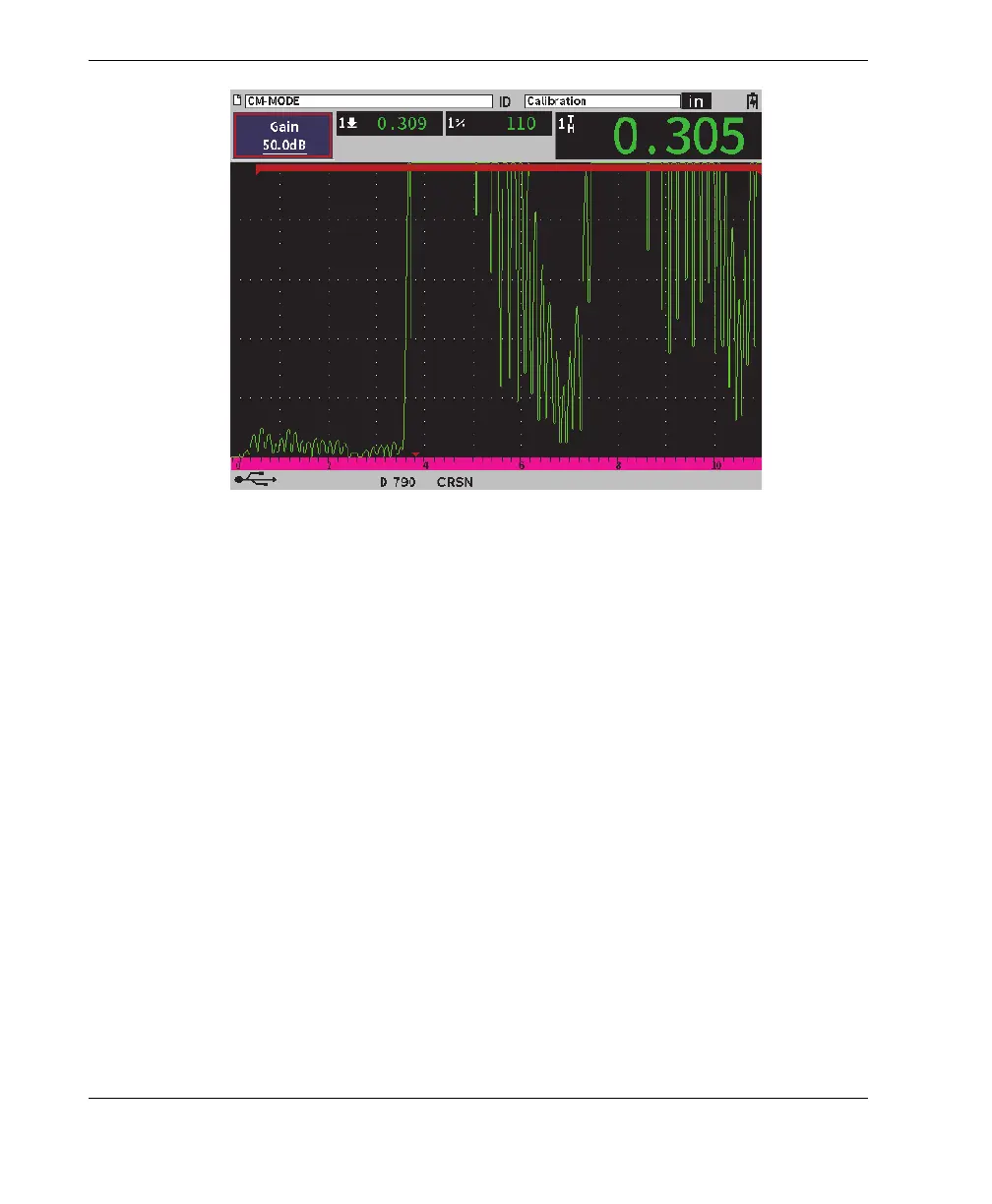

Figure 11-39 Adjust gain value in precision mode
To control extended blanking (gate 1 start position)
Select G1Start from the Sidebar menu and turn the adjustment knob to increase or
decrease the gate 1 start position until the measurement is correctly triggered (see
Figure 11-40 on page 201).
