DMTA-10084-01EN, Rev. 2, November 2018
Gates
85
To set up a minimum depth alarm with gate tracking
With the G1 Alarm set to Min Depth, press the Tab key to move to G1 Min
Depth, and then adjust the setting.
7.10 Peak Memory
The peak memory function enables on-screen capture and storage in memory of the
amplitude of each A-scan acquisition. When you scan the transducer over a reflector,
the peak memory signal envelope (echo dynamic as a function of transducer position)
is retained on the screen in blue (see Figure 7-11 on page 85). The display updates
whenever a signal of greater amplitude is acquired. In addition, the current, live
waveform is displayed at the appropriate place within the signal envelope.

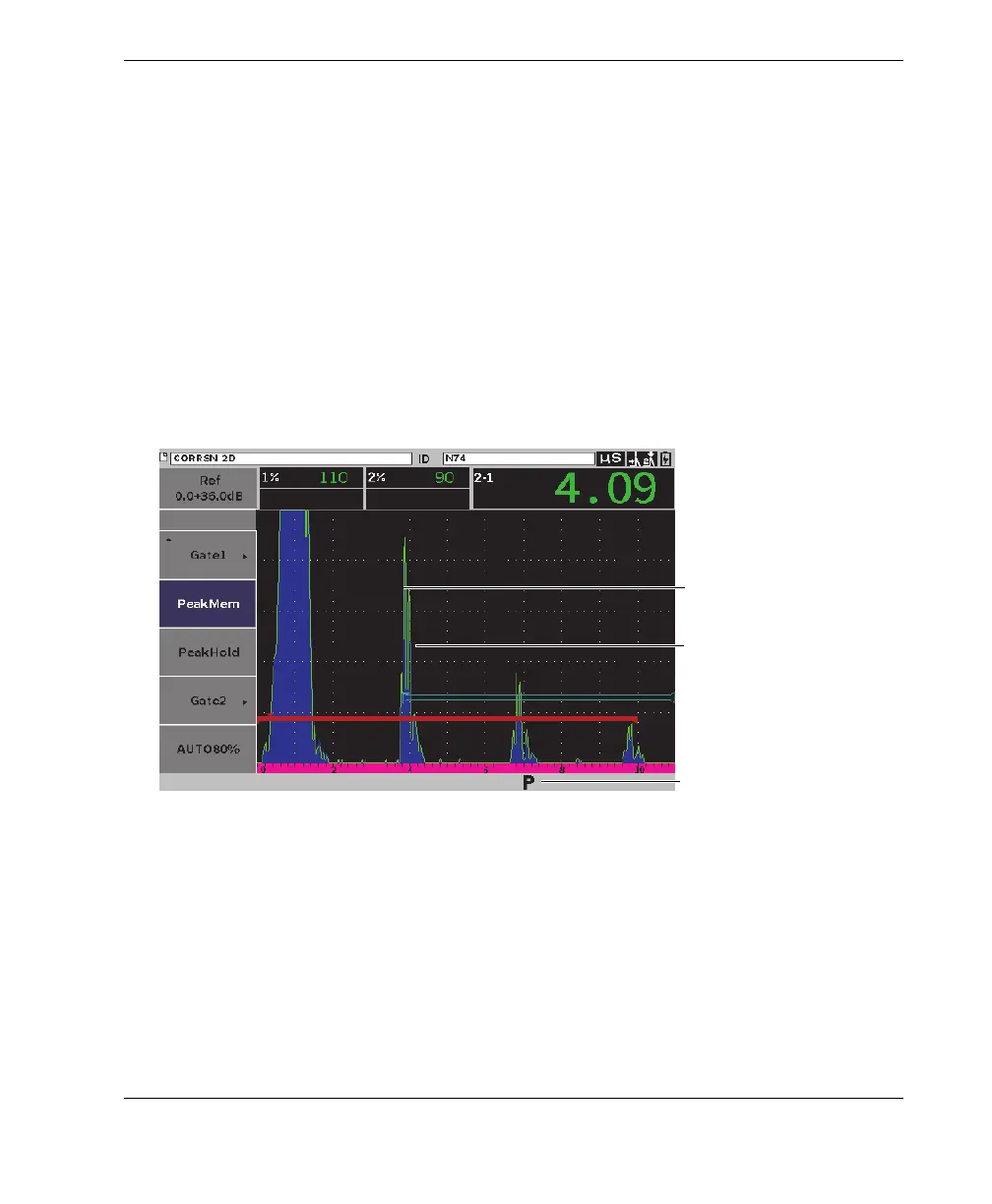

Figure 7-11 Peak memory signal envelope example
This function is useful for finding the peak from an indication during an angle beam
inspection.
Peak memory flag
Peak memory signal envelope
(blue area)
Current live waveform (green
line)
