DMTA-10084-01EN, Rev. 2, November 2018
Software Features and Options
195
3. Select the Corrosn icon ( ) to open the Corrosion dialog box (see Figure 11-24
on page 182). See “Navigating Dialog Boxes and Setup Pages” on page 19 for
details on using dialog boxes.

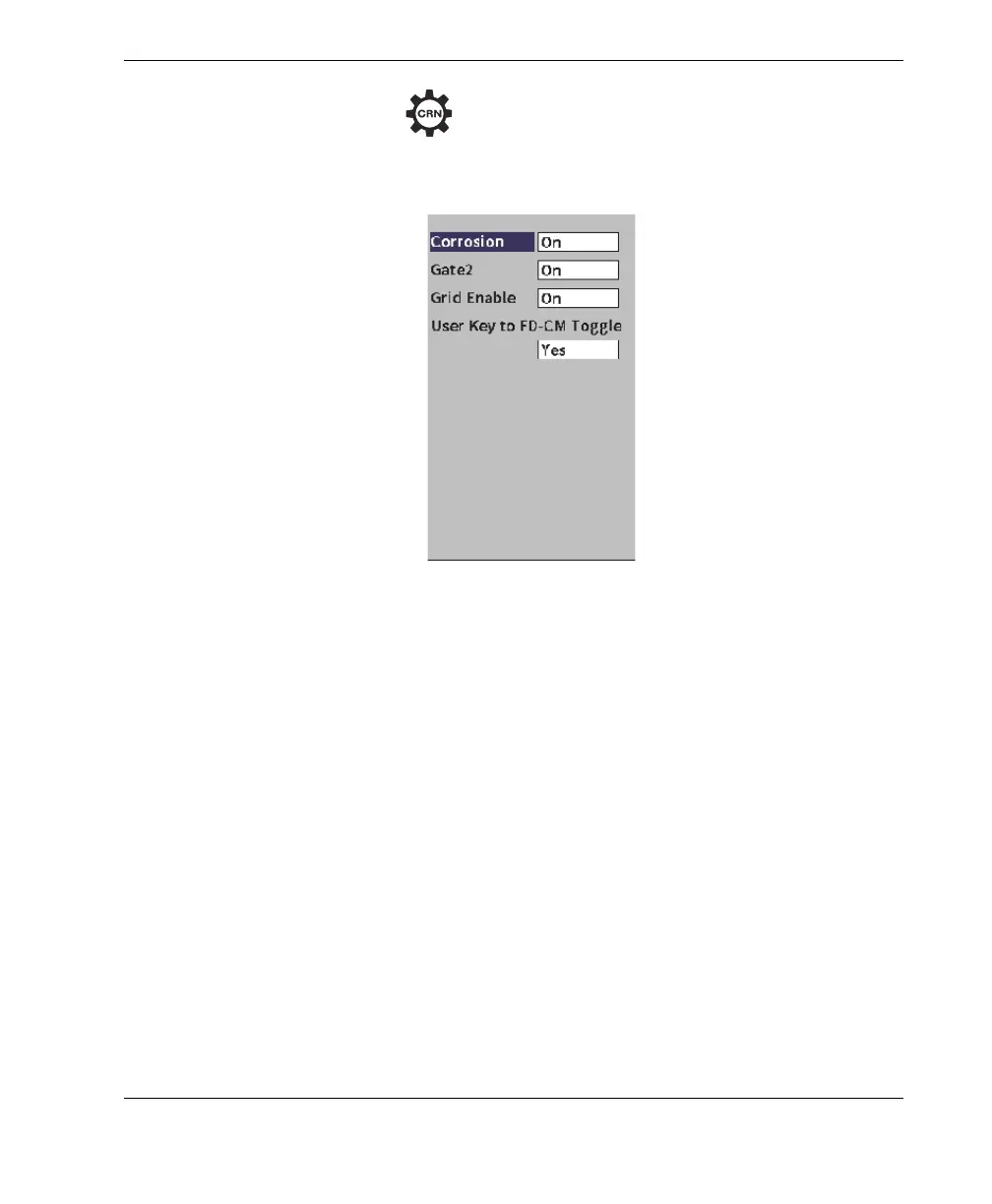

Figure 11-34 Corrosion dialog box
4. Press the Enter key to highlight the Corrosion parameter box.
5. Turn the adjustment knob to set Corrosion mode to On.
6. Set Gate2 and Grid Enable to On.
7. Set User Key to FD-CM Toggle to Yes if needed
8. Press ESC twice to finish the activation and exit to Precision Mode.
9. If using a transducer without the center pin, select a probe on the Transducer
Setup page after activating the Corrosion Module (see Figure 11-33 on page 194).
