DMTA-10084-01EN, Rev. 2, November 2018
Setup Pages
47
Gate 1 Surface Distance Horizontal distance to reflector in gate 1.
Used with the Angle setting.
Gate 2 Surface Distance Horizontal distance to reflector in gate 2.
Used with the Angle setting.
Gate 1 Surface Dist — X Val Horizontal distance minus the x value
(distance from beam index point to front of
wedge) in gate 1. Used with the Angle
setting.
Gate 2 Surface Dist — X Val Horizontal distance minus the x value
(distance from beam index point to front of
wedge) in gate 2. Used with the Angle
setting.
Gate 1 Minimum Depth Minimum depth in gate 1. Resets on gate
adjustment and on most pulser/receiver
adjustments.
Gate 2 Minimum Depth Minimum depth in gate 2. Resets on gate
adjustment and on most pulser/receiver
adjustments.
Gate 1 Maximum Depth Maximum depth in gate 1. Resets on gate
adjustment and on most pulser/receiver
adjustments.
Gate 2 Maximum Depth Maximum depth in gate 2. Resets on gate
adjustment and on most pulser/receiver
adjustments.
Gate 1 Current Amplitude Amplitude measurement in gate 1.
Displays as % of full-screen height (FSH).
Gate 2 Current Amplitude Amplitude measurement in gate 2.
Displays as % of full-screen height (FSH).
Gate 1 Maximum Amplitude
Maximum amplitude in gate 1. Resets on
gate adjustment and on most
pulser/receiver adjustments.
Gate 2 Maximum Amplitude
Maximum amplitude in gate 2. Resets on
gate adjustment and on most
pulser/receiver adjustments.

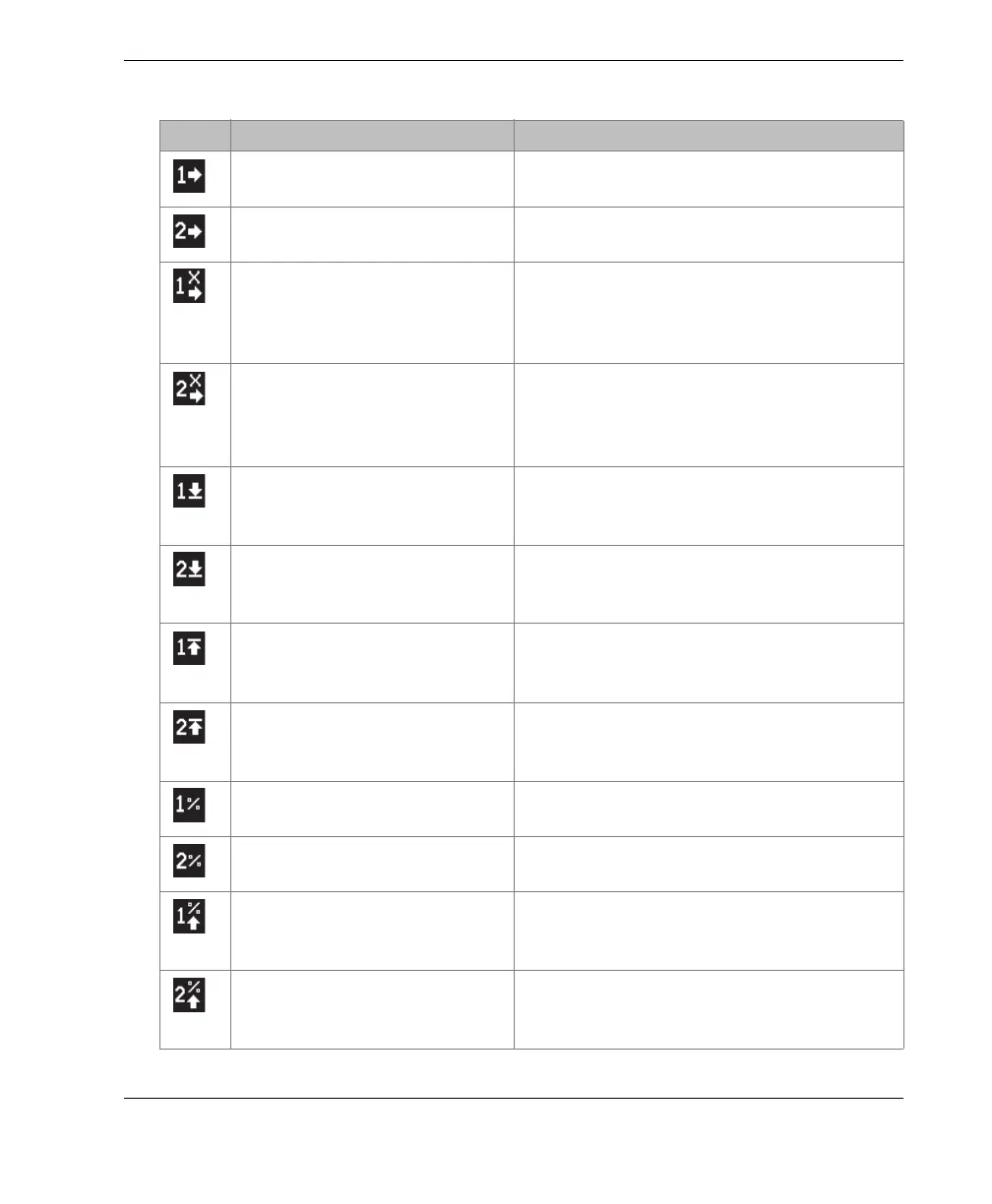

Table 3 Available measurement readings (continued)
Flag Measurement reading Description
