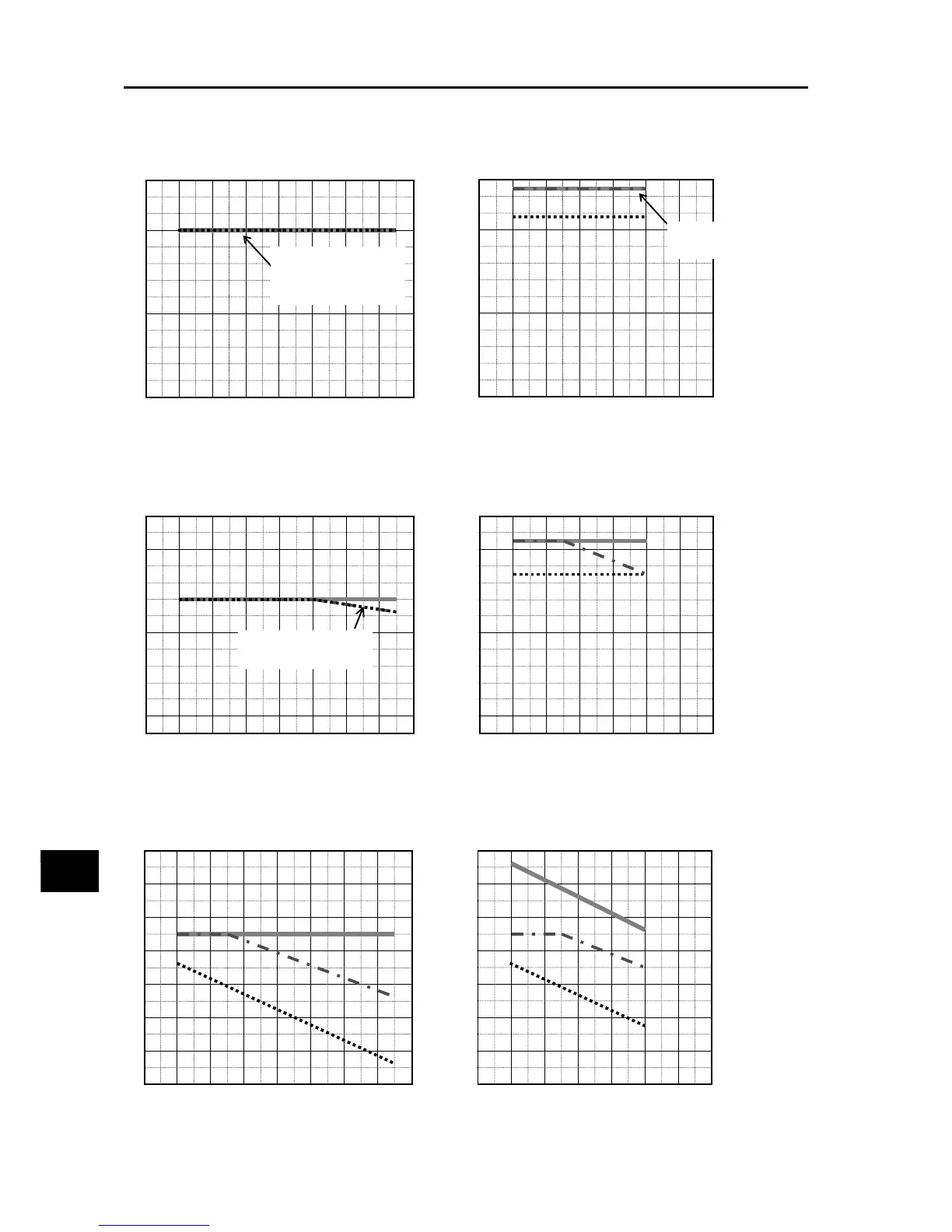

Appendix-1 Derating Table
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
A
Appendix
3G3MX2-A2004
3G3MX2-A4007
3G3MX2-A2037
2 4 6 8 10 12 16 kHz140
1.0
Heavy load rating (3.0 A) Light load rating (3.5 A)
Carrier frequency Carrier frequency
2.0
3.0
3.6
40 °C Normal installation
40 °C Side-by-side
50 °C Normal installation
2 4 6 8 10 12 14 kHz0
3.0
1.0
2.0
3.6
40 °C Normal installation
40 °C Side-by-side
24681012 16 kHz140
2.0
Heavy load rating (3.4 A)
Carrier frequency
3.0
2 4 6 8 10 12 14 kHz0
Light load rating (4.1 A)
Carrier frequency
4.0
2.0
3.0
4.0
4.4
4.4
40 °C Side-by-side
50 °C Normal installation
Carrier frequency Carrier frequency
2 4 6 8 10 12 16 kHz140
Heavy load rating (17.5 A)
2 4 6 8 10 12 14 kHz0
Light load rating (19.6 A)
20
19
18
17
16
15
14
19
18
17
16
15
14
20
