Appendix-1 Derating Table
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
A
Appendix
3G3MX2-A4040
3G3MX2-A2075
3G3MX2-A4075

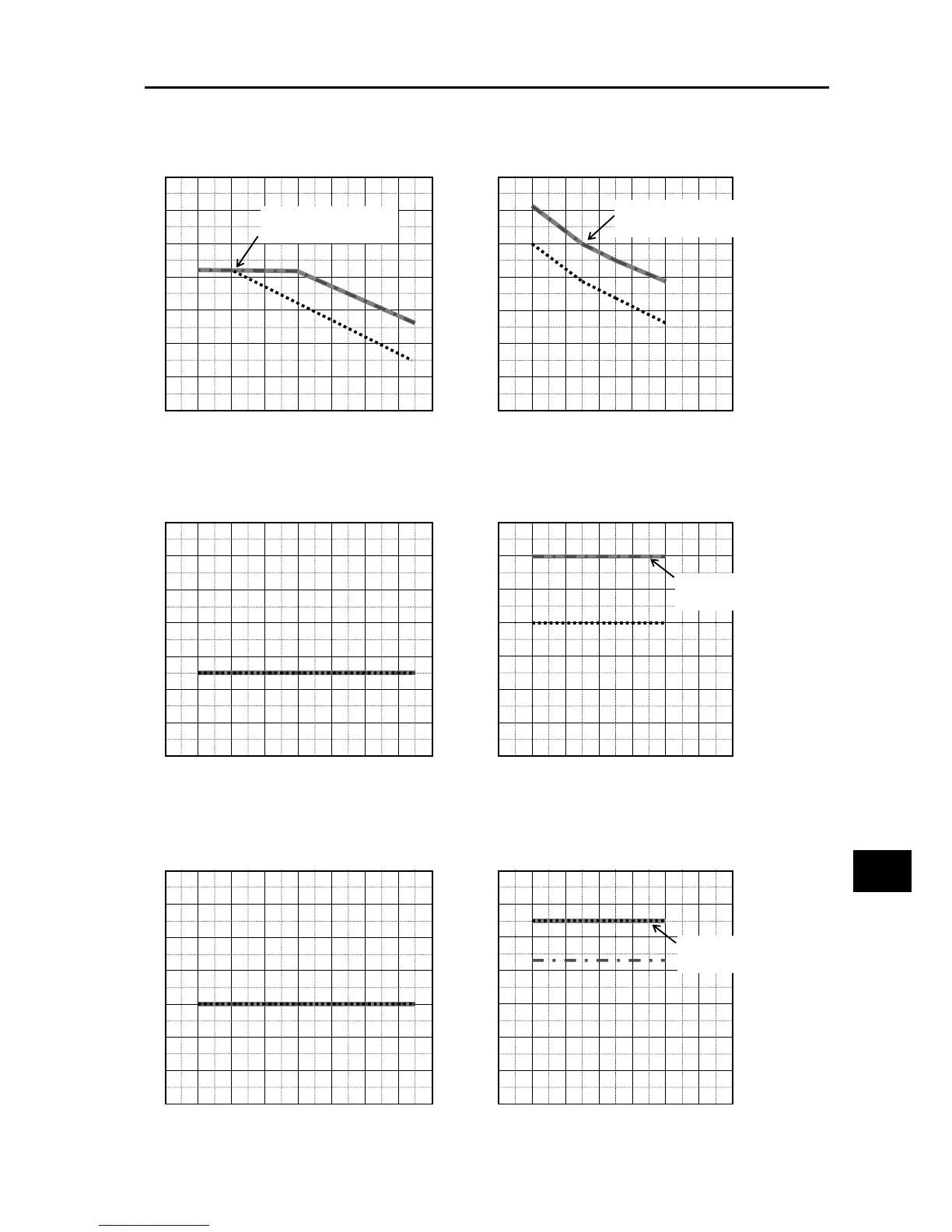

2 4 6 8 10 12 16 kHz140
Heavy load rating (9.2 A)
Carrier frequency
2 4 6 8 10 12 14 kHz0
Light load rating (11.1 A)
Carrier frequency
12
11
10
9
8
7
6
11
10
9
8
7
6
12
40 °C Normal installation
40 °C Side-by-side
40 °C Side-by-side
40 °C Normal installation
2 4 6 8 10 12 16 kHz140
Heavy load rating (33.0 A)
Carrier frequency
2 4 6 8 10 12 14 kHz0
Light load rating (40.0 A)
Carrier frequency
42
40
38
36
34
32
30
40
38
36
34
32
30
42
40
40
40 °C Normal installation
40 °C Side-by-side
2 4 6 8 10 12 16 kHz140
Heavy load rating (18.0 A)
Carrier frequency
2 4 6 8 10 12 14 kHz0
Light load rating (23.0 A)
Carrier frequency
26
24
22
20
18
16
14
24
22
20
18
16
14
26
40 °C Normal installation
50 °C Normal installation
