Omron SYSDRIVE MX2 SERIES User Manual

2-24
2-2 Wiring
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
2
Design

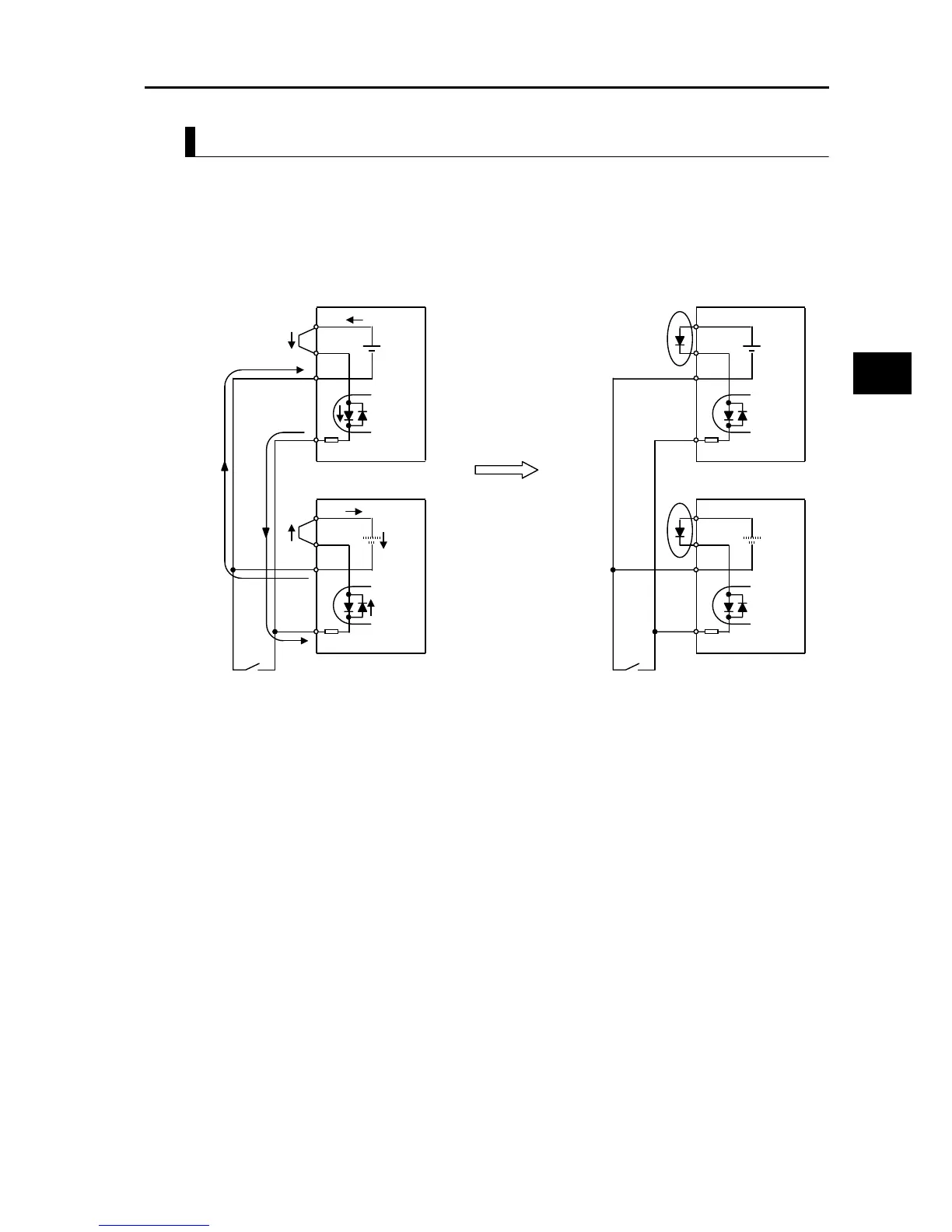

Note on Use of Multiple Inverters
If multiple Inverters are using a common input (switch, etc.) and the Inverters are turned on at
different timings, a sneak current path will be generated as shown below and the input may be
recognized as ON when it is actually OFF.
In this case, be sure to insert a diode (rating: 50 V/0.1 A) in the location shown below to prevent
the sneak current path.
1. For Sink Logic
Add a diode
P24
PSC
SC
S1
Shorting line
P24
PSC
SC
S1
Switch OFF
Without this diode, a sneak current path is generated
and the input turns ON when the switch is OFF.
Power ON
Power OFF
Shorting
line
Input ON
P24
PSC
SC
S1
P24
PSC
SC
S1
Switch OFF
Install a diode instead of the shorting
bar to prevent the sneak current path.
Power ON
Power OFF
Input OFF
