Identify and Remove a Faulty Processor
3.

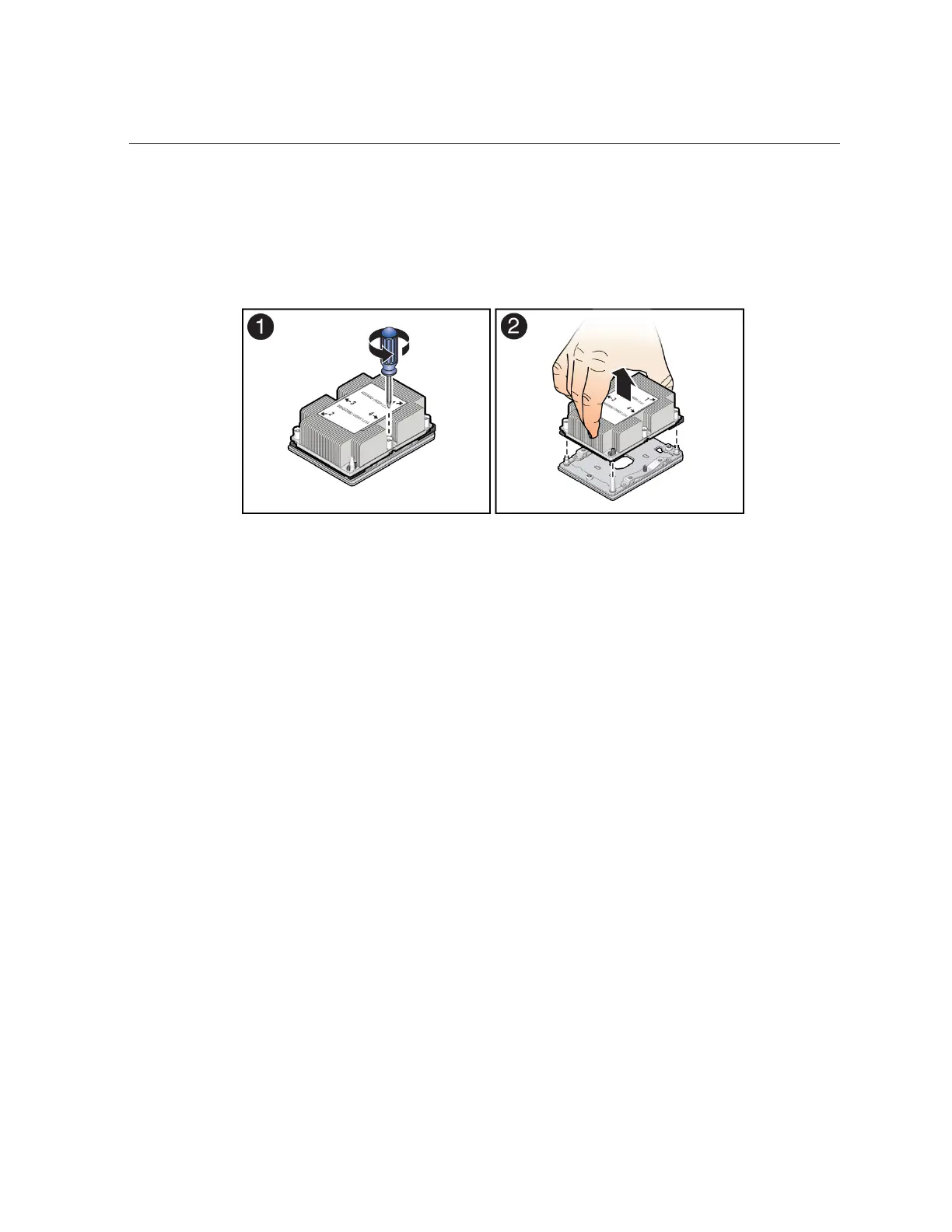

Using a Torx T30 screwdriver, loosen the four captive nuts that secure the
processor-heatsink module to the socket: fully loosen nut 4, then 3, then 2, then
1. [1]
4.
Lift the processor-heatsink module from the socket [2].
Always hold the processor-heatsink module along the axis of the fins to prevent damage.
5.
Separate the processor from the heatsink.
140 Oracle Server X7-2 Service Manual • October 2017

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
