Install a Processor
a.
Align the pin 1 indicators between the heatsink and processor carrier in
the packaging tray, and place the heatsink (thermal side down) onto the
processor carrier until it snaps in place and lies flat.
Note - The processor carrier has latching posts at each corner: two that insert into heatsink holes
and two that attach to the edge of the heatsink.

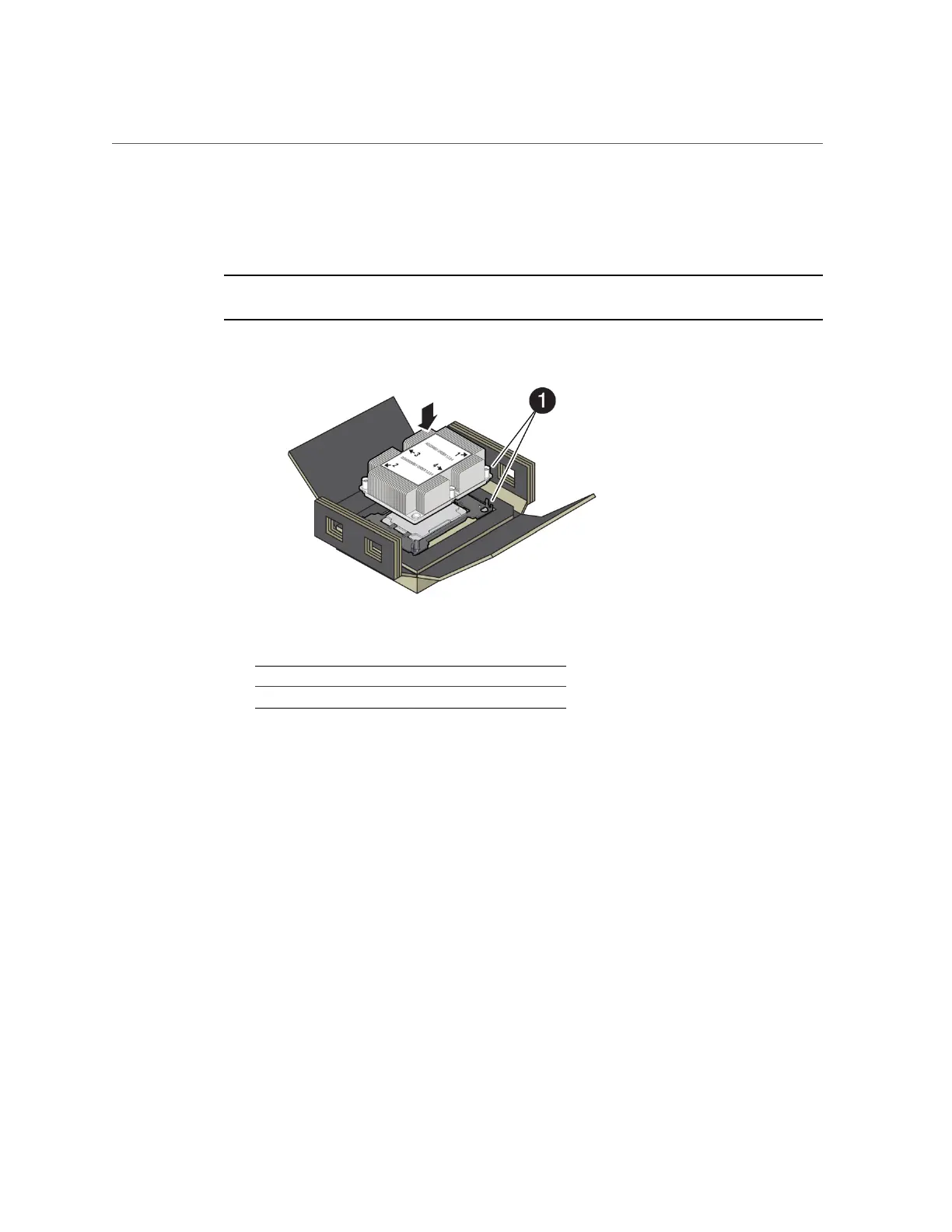

Callout Description
1 Pin 1 indicator
