Oracle X7-2 Service Manual

Install a Processor
b.

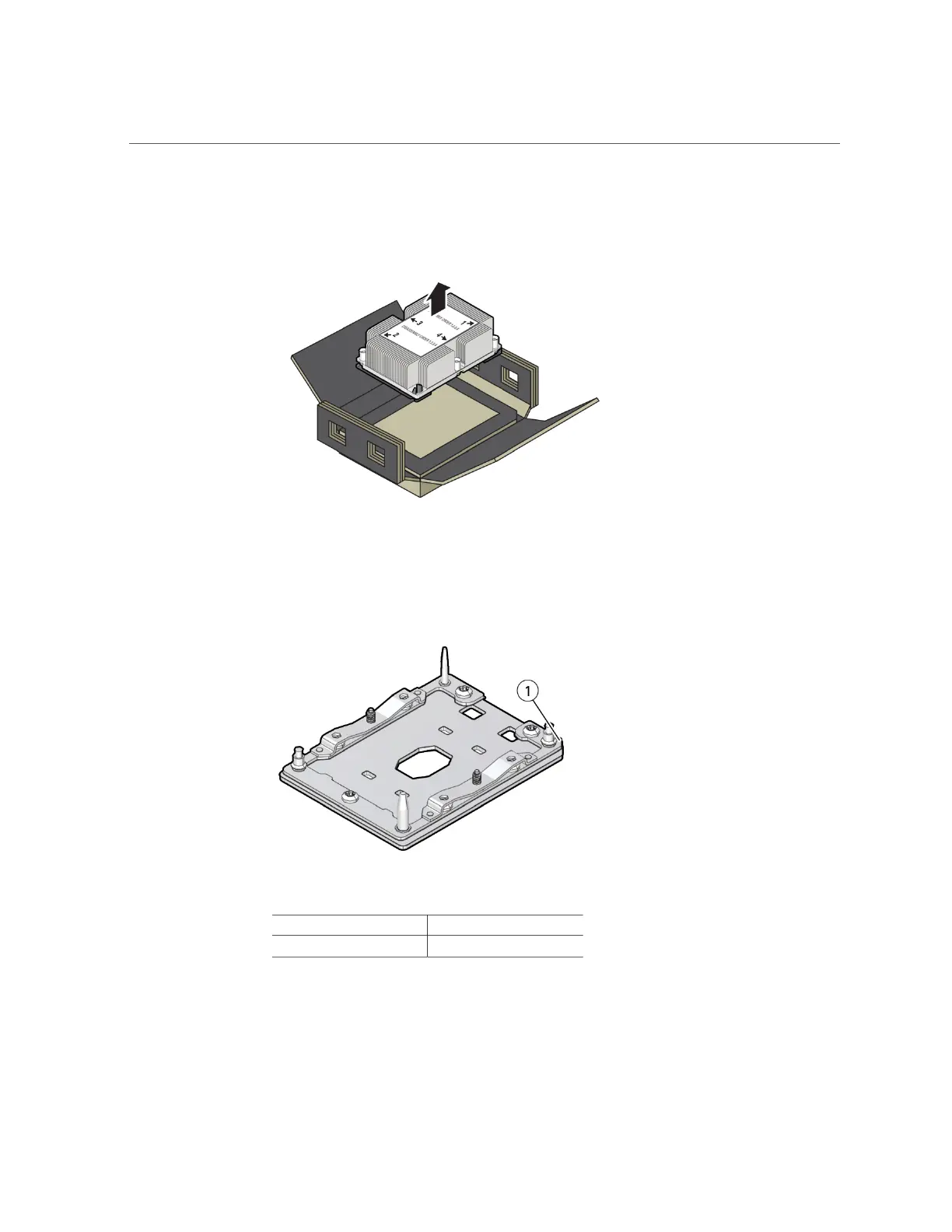

Lift the processor-heatsink module out of the packaging tray.
c.
Align the processor-heatsink module to the processor socket bolster plate
on the motherboard, matching the pin 1 location (a triangle indicator).
Callout Description
1 Pin 1 indicator
d.
Place the processor-heatsink module on the socket on the motherboard.
146 Oracle Server X7-2 Service Manual • October 2017

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
