Oracle X7-2 Service Manual

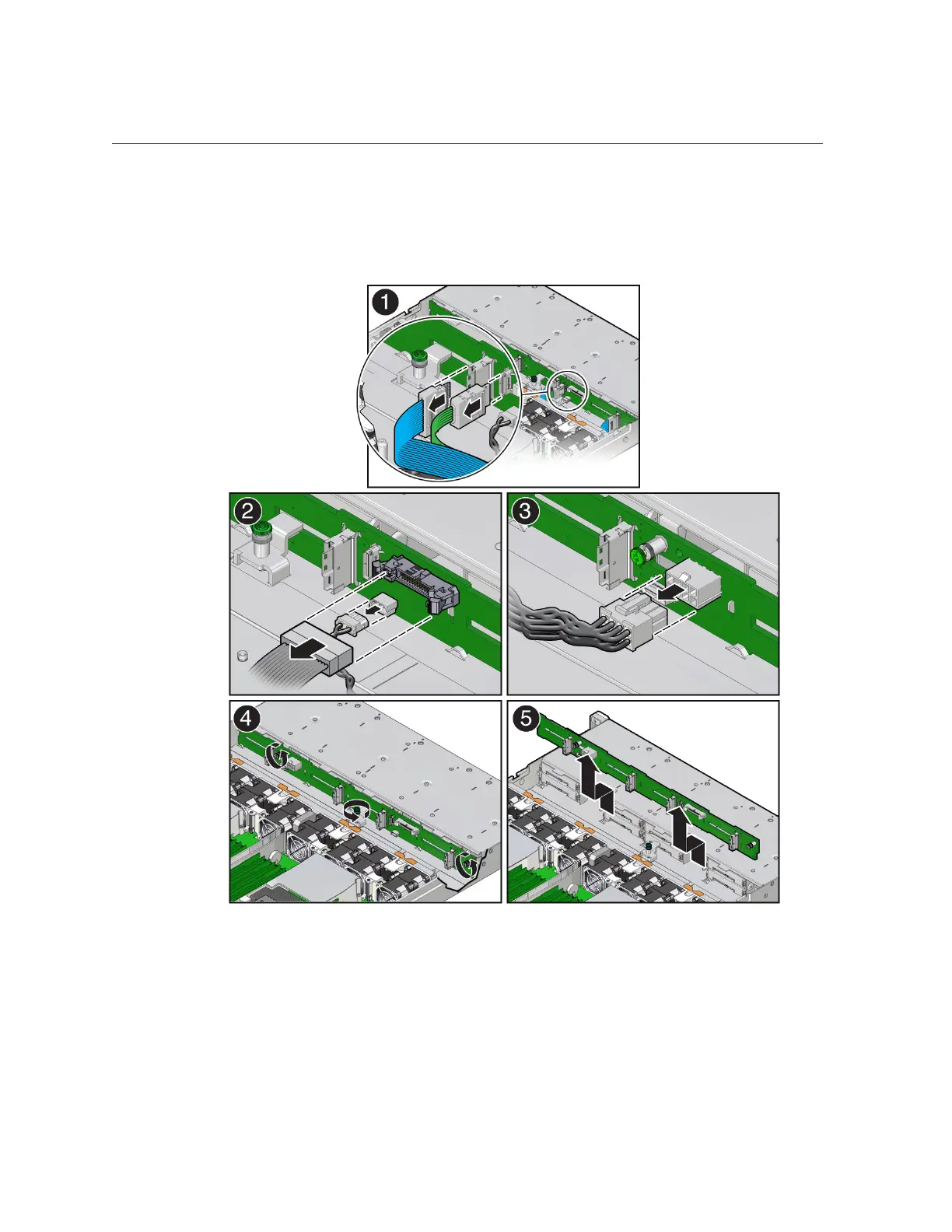

Remove the Disk Backplane
3.
Disconnect the SAS cables or the NVMe cables (if present) from the disk
backplane [1].
4.
Disconnect the disk backplane data cable and the temperature sensor cable
from the disk backplane [2].
5.
Disconnect the disk backplane power cable from the disk backplane [3].
Servicing the Disk Backplane (FRU) 153

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
