Oracle X7-2 - Page 164

Remove the Temperature Sensor
b.
Extend the server to the maintenance position.
See “Extend the Server to the Maintenance Position” on page 59.
c.
Attach an antistatic wrist strap to your wrist, and then to a metal area on the
chassis.
See “Take Antistatic Measures” on page 61.
d.
Remove the server top cover.
See “Remove the Server Top Cover” on page 62.
2.

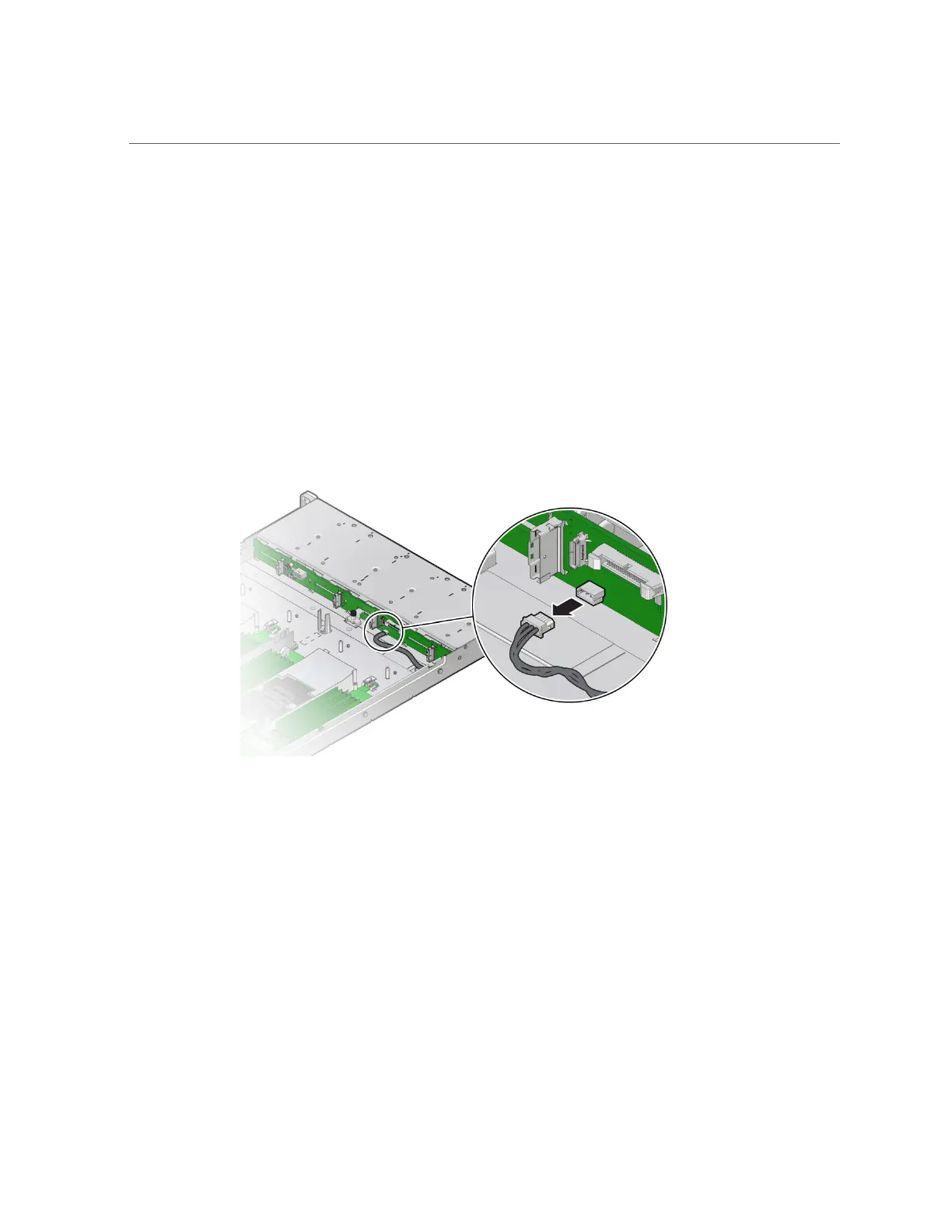

Disconnect the temperature sensor cable from the disk backplane.
164 Oracle Server X7-2 Service Manual • October 2017
