Oracle X7-2 Service Manual

Install the Internal HBA Card and HBA Super Capacitor
See “Install the Internal HBA Cables” on page 182.
Note - If you did not remove the HBA super capacitor when removing the internal HBA card,
reconnect the HBA super capacitor cable to the internal HBA card.
5.

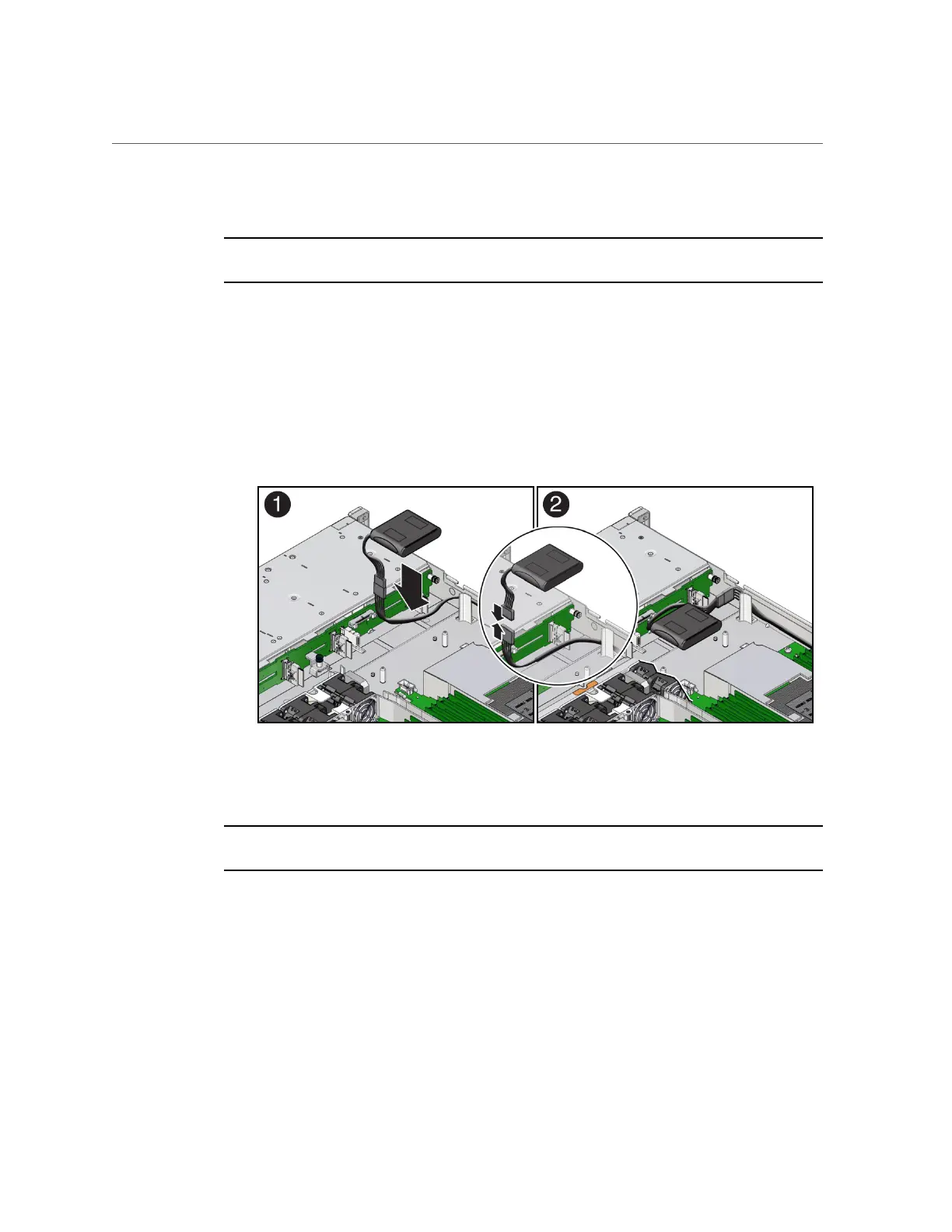

Install the super capacitor into the server.
a.
Attach the reclosable fasteners supplied with the replacement super
capacitor to its underside.
b.
Connect the super capacitor cable to the super capacitor [1, 2].
c.
Press the super capacitor into the server's chassis so that it is secured to
the existing reclosable fastener [2].
Note - If disconnected during the removal procedure, reconnect the data cable to the disk
backplane.
6.
Connect the SAS cables and the super capacitor cable to the internal HBA card.
Servicing the Internal HBA Card and HBA Super Capacitor (FRU) 175

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
