Oracle X7-2 Service Manual

Remove the Internal HBA Cables
2.

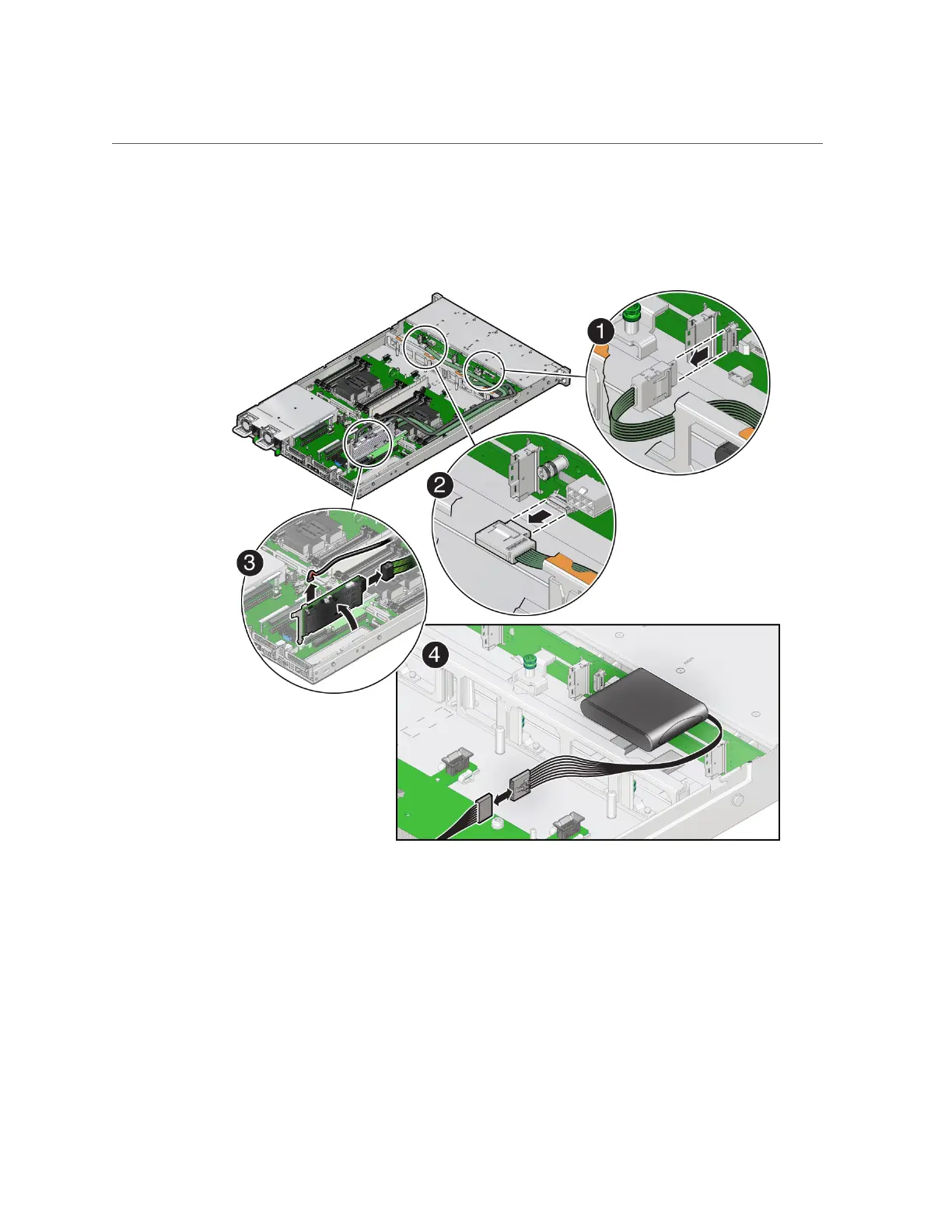

Disconnect both SAS cables from the disk backplane by pressing the latch on
the cable connector and then pulling out the connector [1, 2].
3.
Disconnect the SAS cables and the super capacitor cable from the internal host
bus adapter (HBA) card.
a.
Remove the PCIe riser from PCIe slot 3 and 4.
See “Remove the PCIe Riser From PCIe Slots 3 and 4” on page 116
Servicing the Internal HBA Cables 181
