8.4 Target Speed Change Function
8-29
8.4.2 Setting Procedures and Operations (Speed Direct Specification Method)

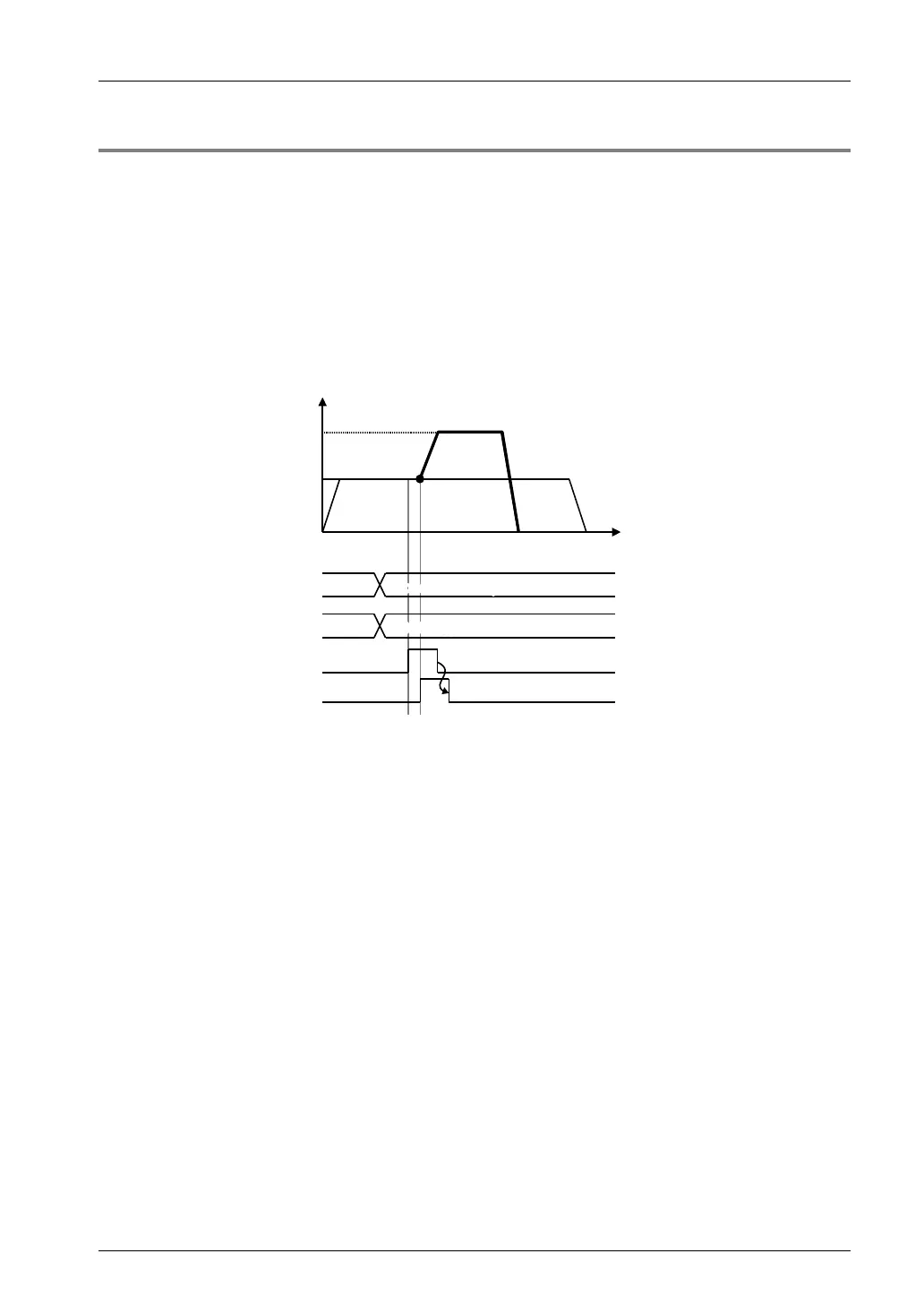

Setting procedures and operations of speed direct specification method
The target speed change function in the speed direct specification method is activated by the
following procedure during a positioning operation.
1. "Change mode selection" and "Change speed" in the unit memory are set.
2. The "Speed change request" turns on during positioning operation.
* "Speed change reception annunciation" turns on when the speed change is actually started.
* Once the "Speed change request" turns off, the "Speed change reception annunciation" also
turns off.
2000
0
0p
ps
20
000
0
f
t
10000
0
Positioning speed change request
Positioning speed change
request reception annunciation
Active table only
Change mode selection
Change speed
(Note 1): The acceleration time to the change speed and the deceleration time from the change speed follow the
setting values of the active table.
(Note 2): The movement amount does not change when the speed change is performed.
