9.5 Electronic Clutch Function
9.5.1 What is Electronic Clutch Function?
The electronic clutch function is used to engage or disengage the clutch for output from the
electronic gear. When the electronic clutch is disengaged, the master axis is separated from
the slave axes and the slave axes not in synchronization with the master axis come to a stop.
When the electronic clutch is engaged, the master axis and slave axes operate in
synchronization.

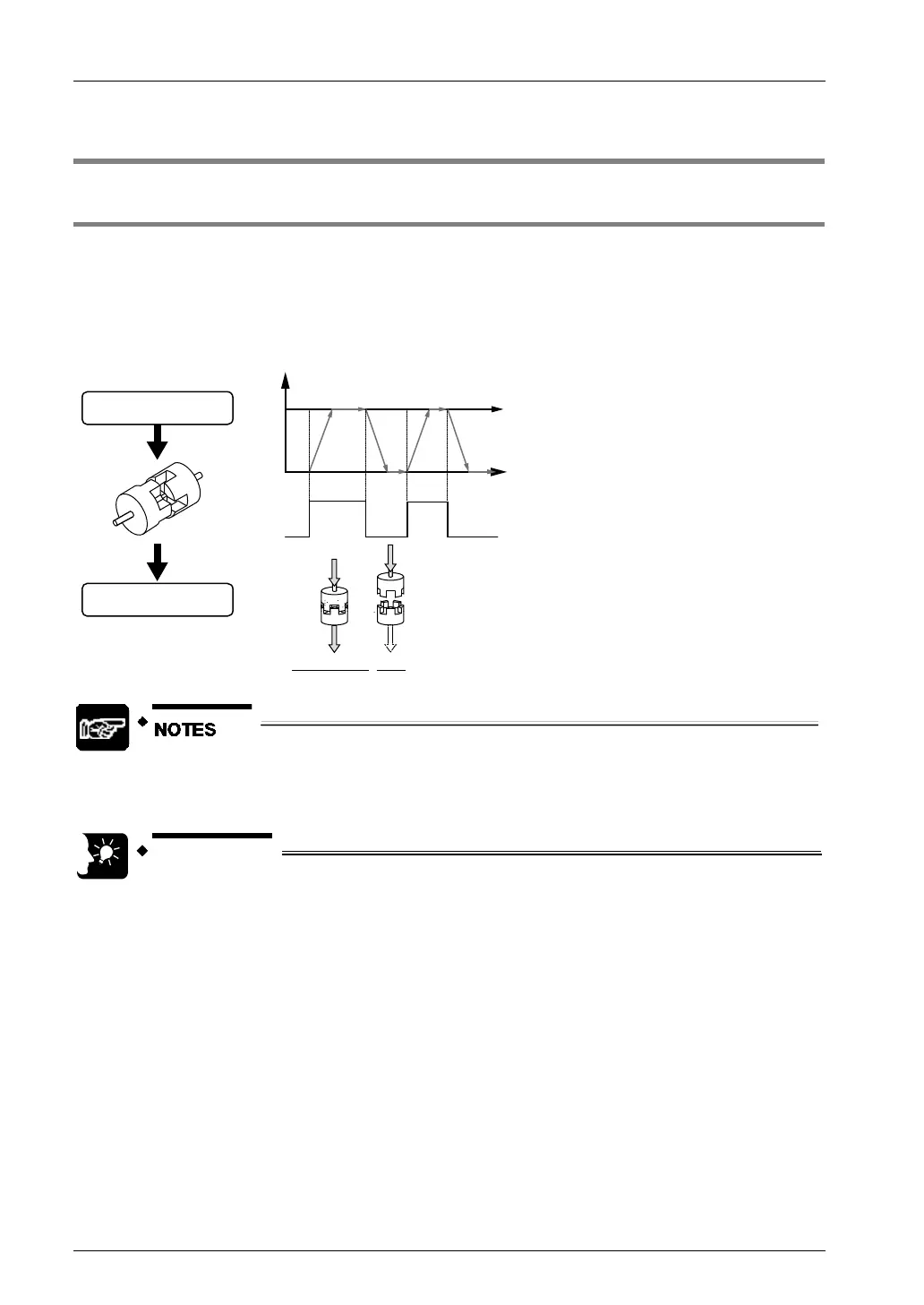

Synchronized
Stop
Electronic gear
output
Electronic clutch
output
Speed [V]
Output speed
ON
OFF
Clutch
Input speed
Time [T]
• Keep in mind that the slave axes may come to a sudden stop if the clutch is
disengaged while making a gear ratio change.
• The electronic clutch is by default disengaged. Be sure to engage the
electronic clutch in response to the operation.
