9.6 Electronic Cam Function
9-37
9.6.4 Editing Cam Patterns by User Programs
Cam patters of data in the cam pattern setting area used for electronic cams can be edited by
using the cam pattern editing area with user programs. This function is available since FP7
MC Unit Ver.1.2.
• There are two operations which are reading cam tables and rewriting cam tables in the cam
pattern editing.
• These operations are performed using the "cam pattern editing area" (UM66F40 to
UM66F97), cam table reading request (Y8) and cam table rewriting request (Y9) of unit
memories.

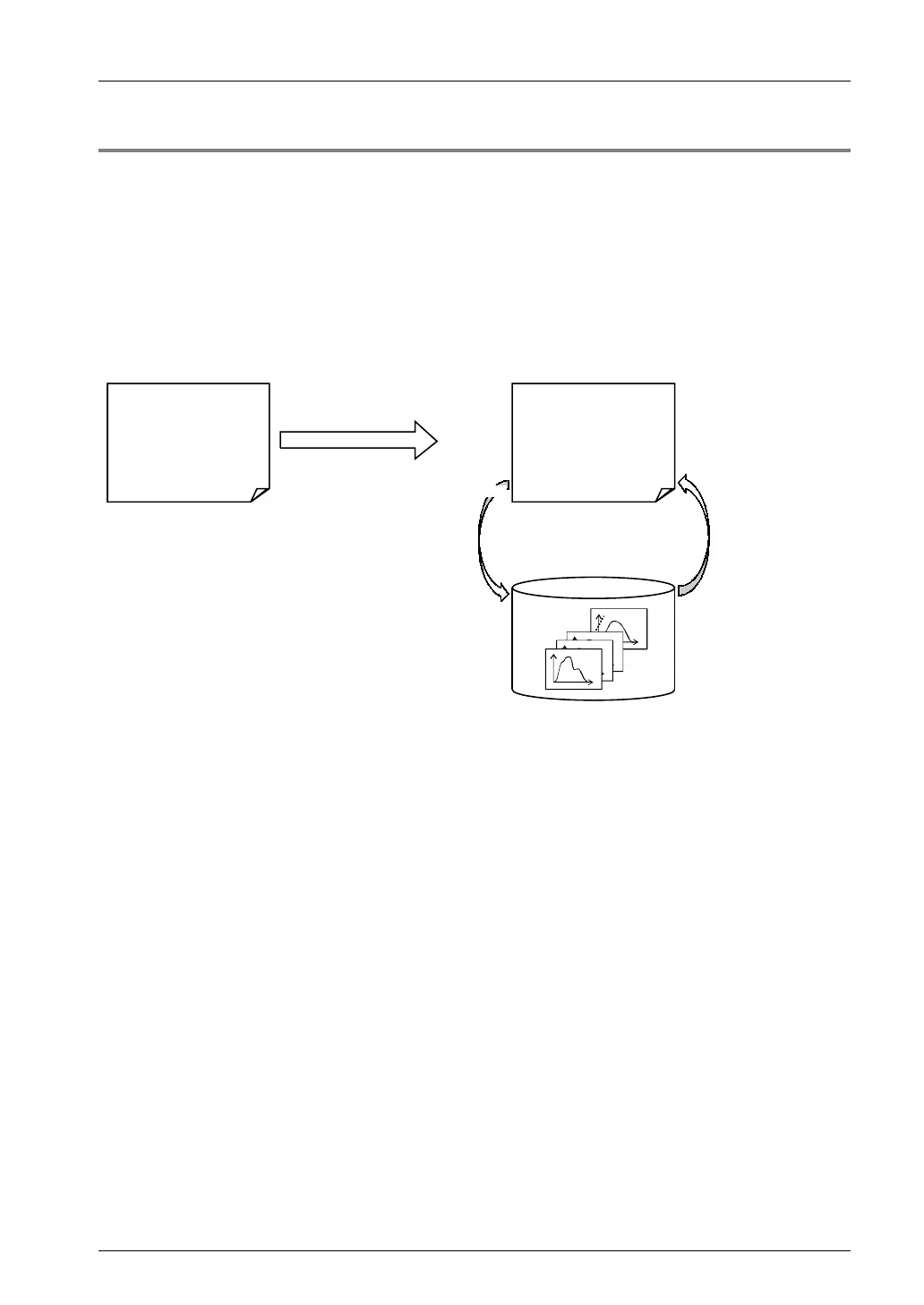

No.n
No.3
No.2
No.1
UM66F40
UM66F97
Rewriting cam tables
User program
Reading cam tables
Internal cam pattern data
Cam pattern editing area
Cam pattern edit no.
Number of set sections
Start phase for sections 1 to n
Displacement
Cam curve no.
Changing parameters
Shift amount
