9.6 Electronic Cam Function
9-33

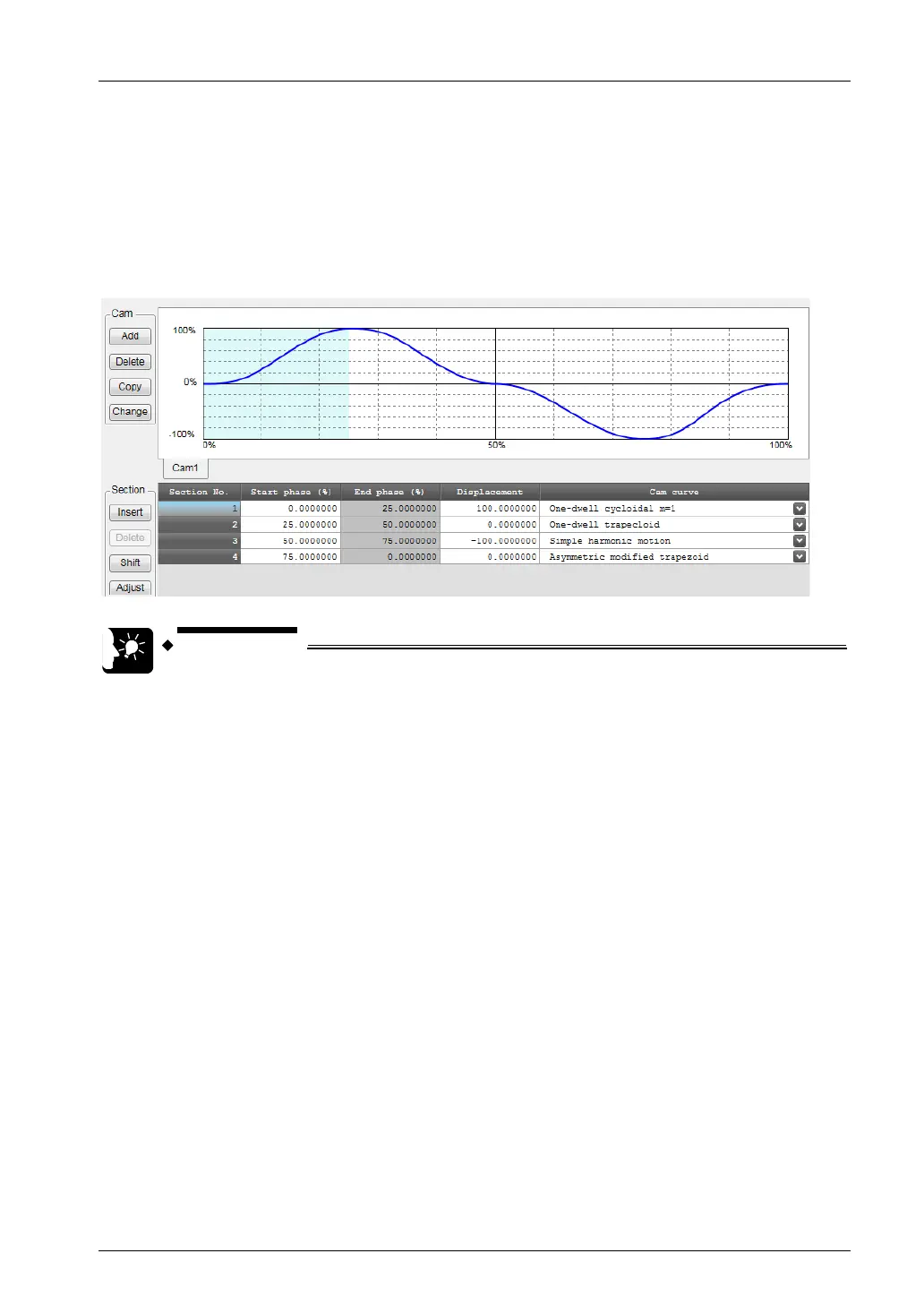

Edit of cam table
Data of created cam tables is edited.
Set the following items in each set section;
- Start phase (%)
- Displacement (%)
- Cam curve
The cam curve changes according to the settings.
• The end phase cannot be set. The end phase is automatically changed
when changing the start phase.
• Do not make a rapid change in displacement for the set cam curve. In the
case of rapid displacement, a motor may not be able to follow the output.
• Also, set the 0% and 100% of the phase to be the same displacement.
