Conformity conditions to EMC Directive
Although this product conforms to EN61131-2 for the European EMC Directive (EMC Directive
2004/108/EC), the following wiring condition is required.
• Always use shielded twisted pair (STP) cables that are compatible with category 5e or higher.

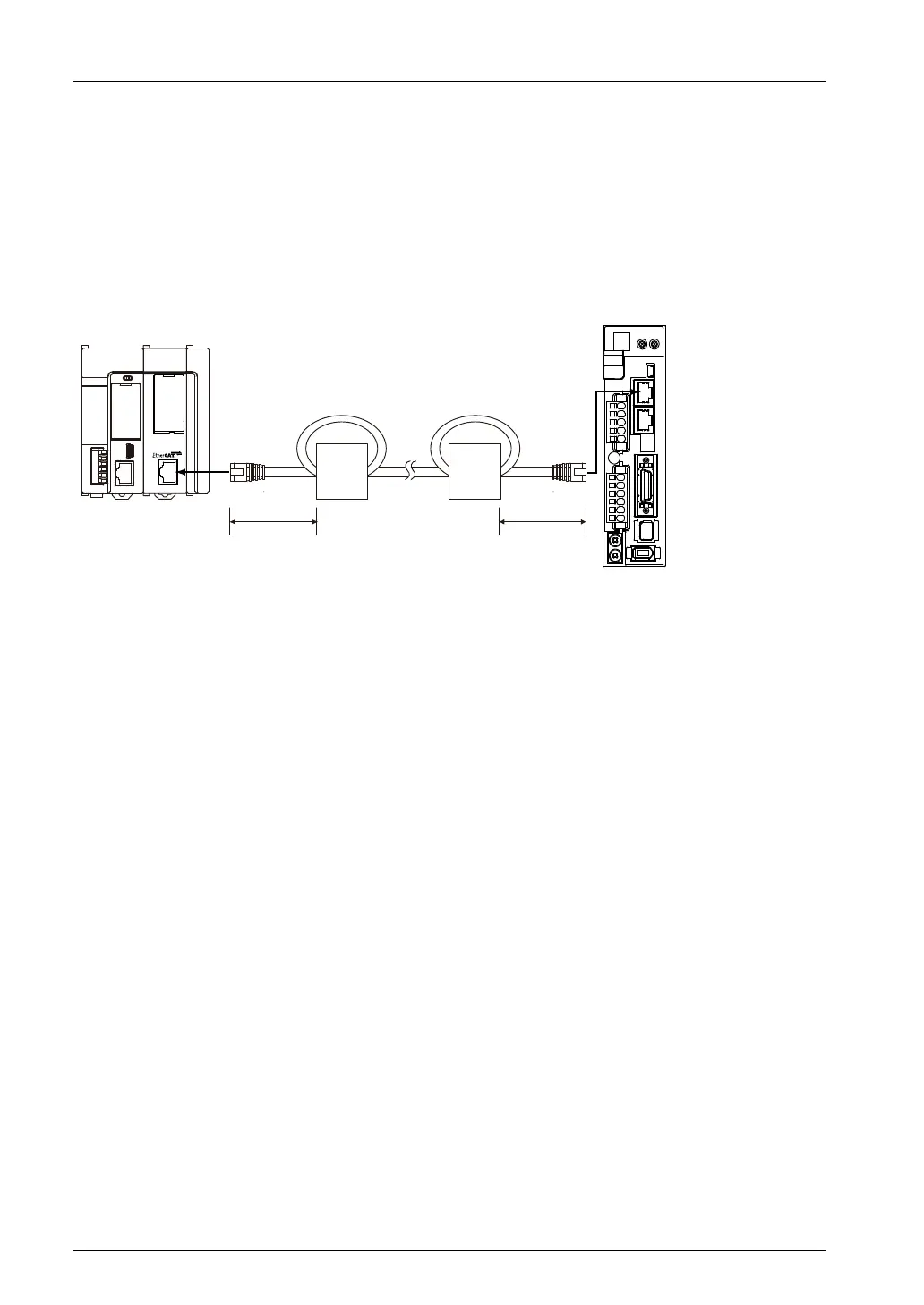

• Attach ferrite cores at two points on the FP7 MC Unit side and Servo Amplifier A6B/A5B side,
and wire the cable to make a loop. Recommended ferrite core: Takeuchi Industry Co., Ltd.
SFT-72SN or equivalent.
AMP
FP7
MC
50mm max.
50mm max.
X2A
