Polaris 2012 RANGER RZR 570 INTL User Manual

8.15
TRANSMISSION
8
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

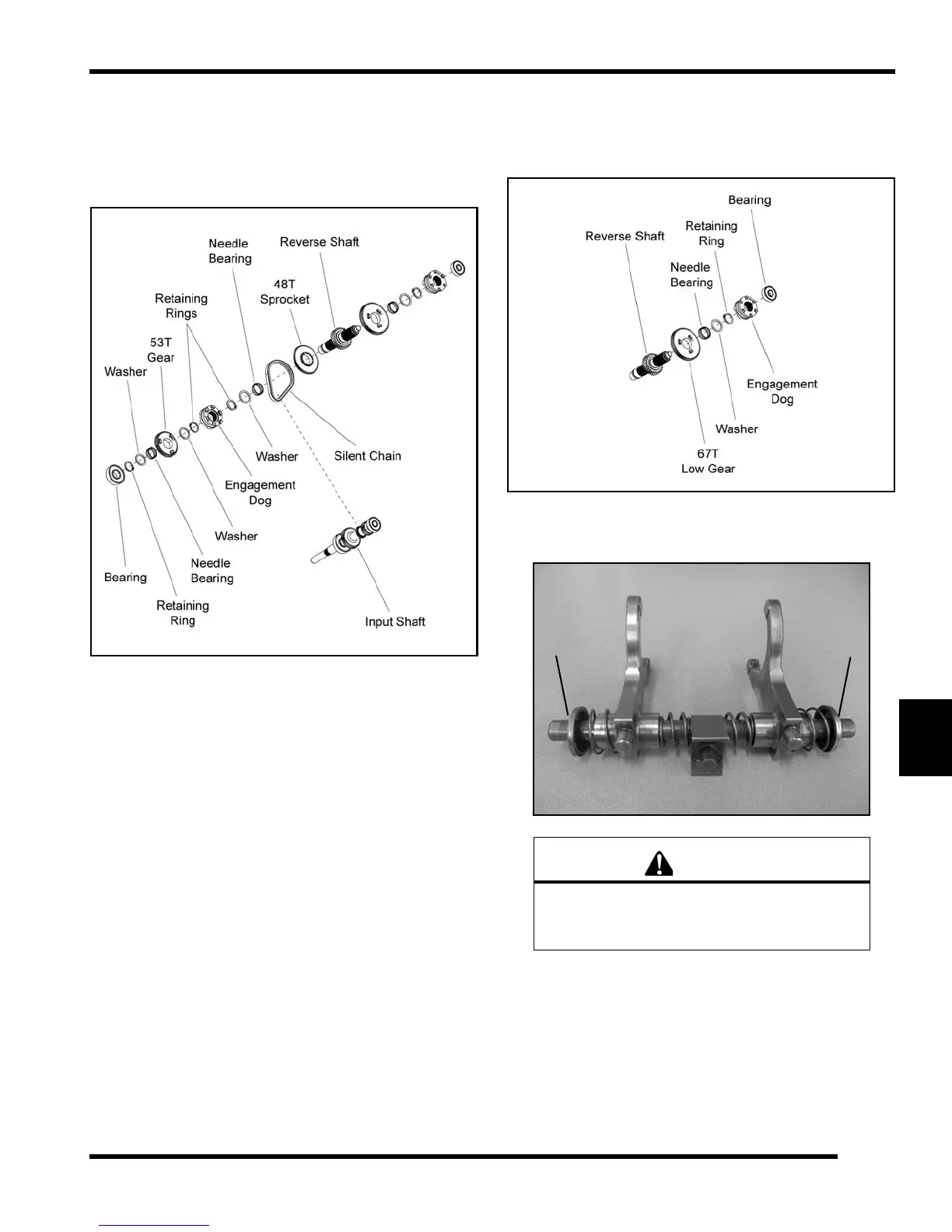

Gear Cluster Disassembly
19. Remove the bearing from the reverse shaft using a
b
earing puller. Remove the retaining ring and slide the
washers, 53T gear and needle bearing off the reverse
shaft (see Figure 8-1).
20. Remove the retaining ring and engagement dog from
th
e reverse shaft (see Figure 8-1).
21. Remove the re taining ring, wa sher, needle bearing,
a
nd sprocket from the reverse shaft (see Figure 8-1).
22. Tilt the two shafts towards each other and remove the
silen
t chain from the two shafts.
23. If necessary, disassemble the other end of the reverse
sh
aft. Rem ove th e b earing, engagement do g,
retaining ring, washer, gear and needle bearing from
the reverse shaft (see Figure 8-2).
24. To disassemble the shift shaft rail remove the snap
r
ing (X) from the end of the shift rail on either side.
Figure 8-1
CAUTION
Use caution when disassembling the shift rail.
The compressed springs on the shift rail may
pop off causing eye or face injury.
Figure 8-2
X
X
