Machine Control : External Machines

23 - 566

Transport Control Panel

Port In Use

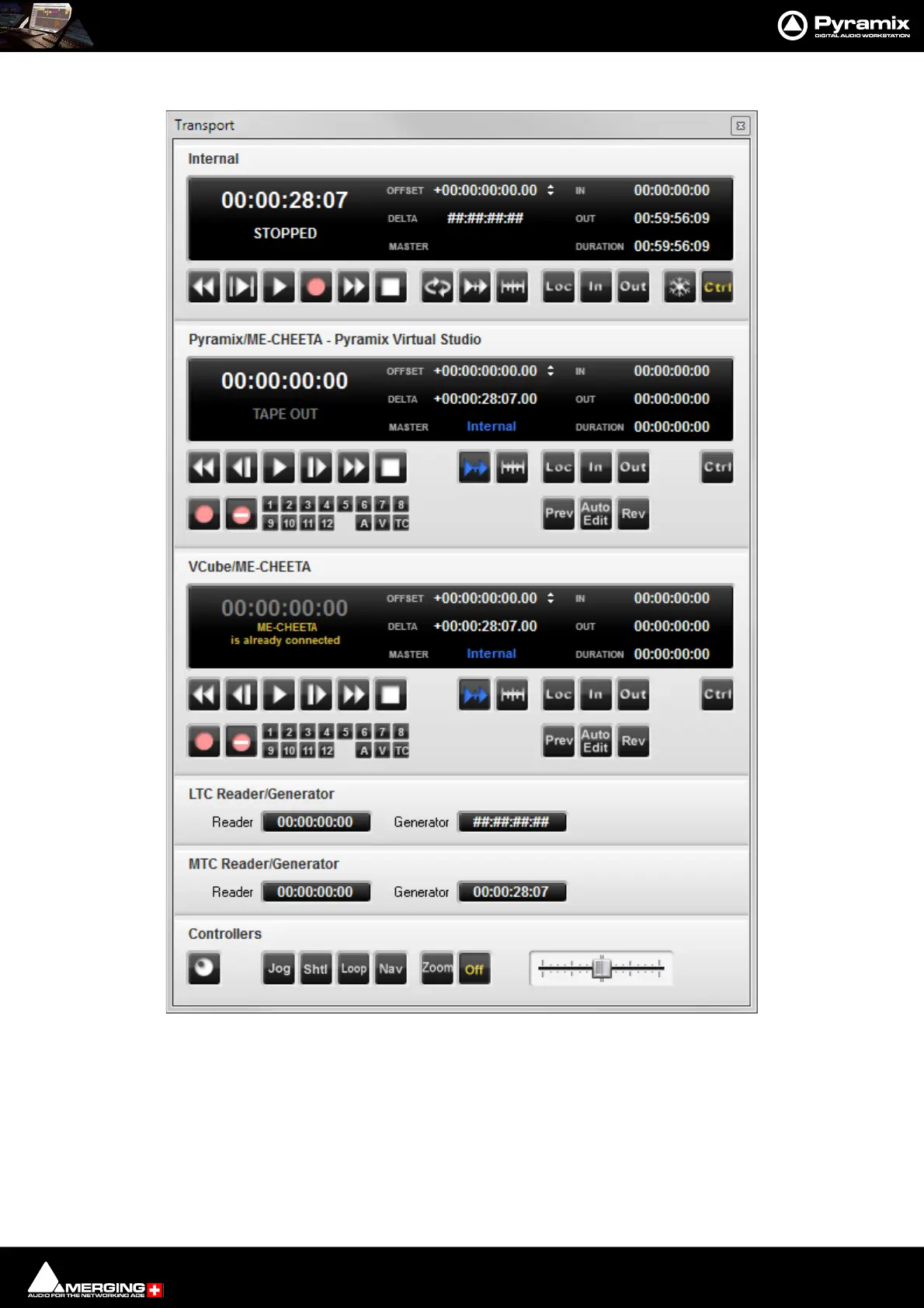

If you attempt to connect to a port which is already in use an error message appears in the relevant section of the

Transport Control Panel. In the example above the remote Pyramix on machine ME-CHEETA is already connected

via 9-pin over IP therefore the remote VCube on machine ME-CHEETA cannot be connected.

Transport Control Panel
