Scalar i2000 Installation Guide 255
21 Connect the six-foot Fibre optical cables to the appropriate Fibre Channel connections on the blades.
Ports 1 and 2 default to target and ports 3, 4, 5, and 6 default to initiator mode.
22 Route the cable through the cable keepers and down the right side of the module.
23 Insert the Fibre optical cable into the Fibre Channel connection on the drive.
Fibre optical cables will be damaged if they are bent at more than a
four inch arc.

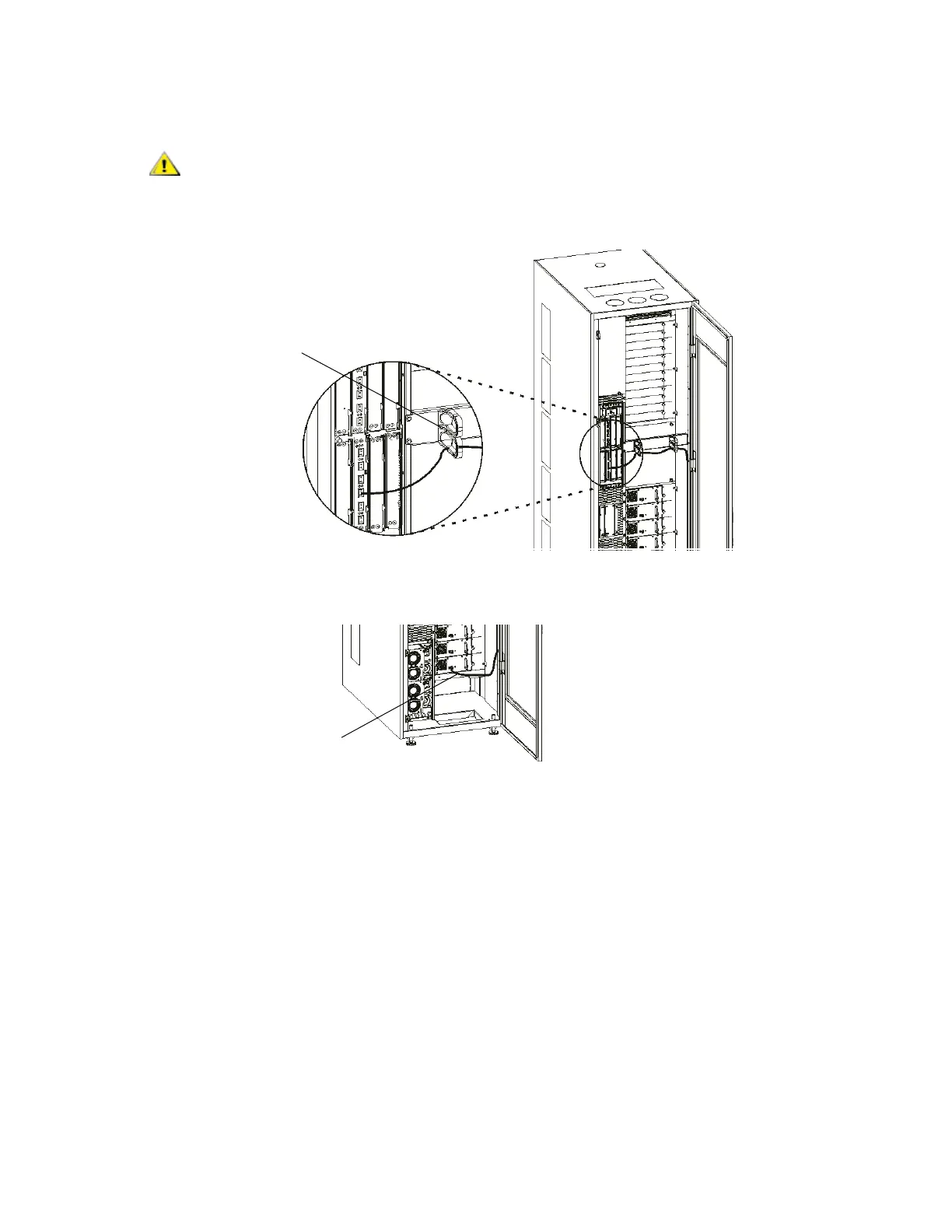

Fibre optic cable routed
through cable keepers
Fibre optic cable connected
to drive in drive sled position 1
