262 Adding Optional Hardware
11 Connect the Fibre optical cable to port FC-3 on the FC I/O blade that is installed in bay 3 of the I/O
management unit. See Table 5
on page 114 for information about the cable connection requirements.
12 Route the cable through the cable keepers and down the right side of the control module or expansion
module.
13 Insert the Fibre optical cable into the Fibre Channel connection on the drive.

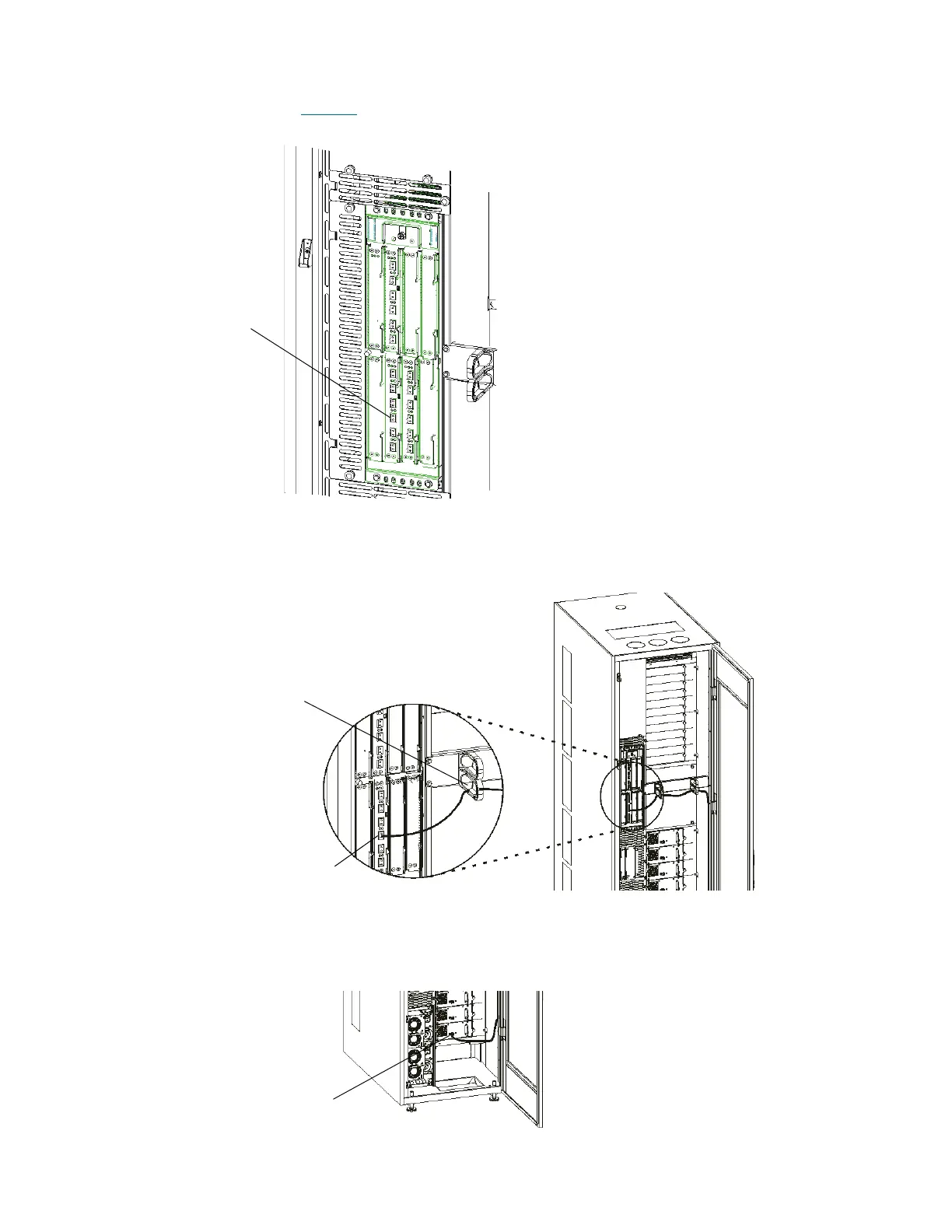

port FC-3 on the
FC I/O blade in
in bay 3
cable connected to FC 3 on
FC I/O blade in bay 3 of the
I/O management unit
Fibre optic cable routed
through cable keepers
Fibre optic cable connected
to drive in drive sled position 1
