Functional Description 1-11
7000-TD002A-EN-P – September 2007
-
+
+
+
-
+
InvFlux CurCmd
(312)
Field CurCmd
(314)
Lmd
(418)
Lm Rated
(131)
Field Bandwidth
(106)
LOW PASS
FILTER
Mtr Flux CurCmd
(131)
Motor Filter
Cap (128)
L Total Leakage
(130)
Lm Rated
(131)
CAP CURRENT
CALCULATOR
Stator
Frequency
(448)
Flux
Reference
(305)
Icd Command
Gain (107)

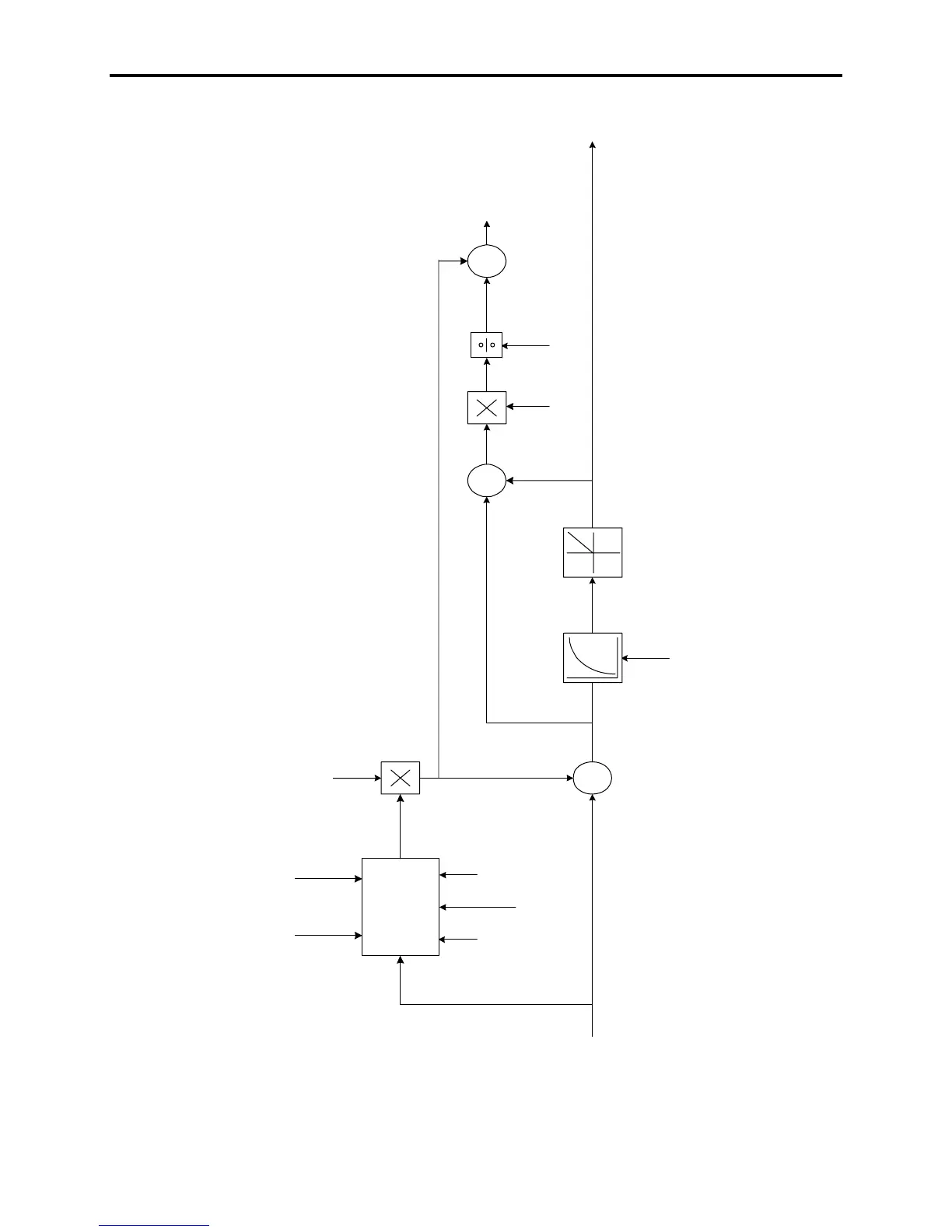

Figure 1.6 – Flux Control for Synchronous Motor
