Battery charging
ENVI-MAG Manual A7-3
Maintenance
Two batteries
1. Place the console, face down, onto a flat smooth surface.
2. Unscrew the knurled screws on each side of the battery cover and lift off the
cover.
3. Connect the spare battery to the AUX. CHARGER OUTPUT connector. Either
side of the plug may be on top.
4. Connect the charger to the power outlet. Adjustments for different line
voltages are made automatically.
5. Connect the charger to the charger input connector.
6. Flip the switch on the charger to On.
7. Observe the charging light at the left hand side of the ENVI-MAG console. It
will be On while charging at a high rate and turn Off when the battery is
nearly charged.

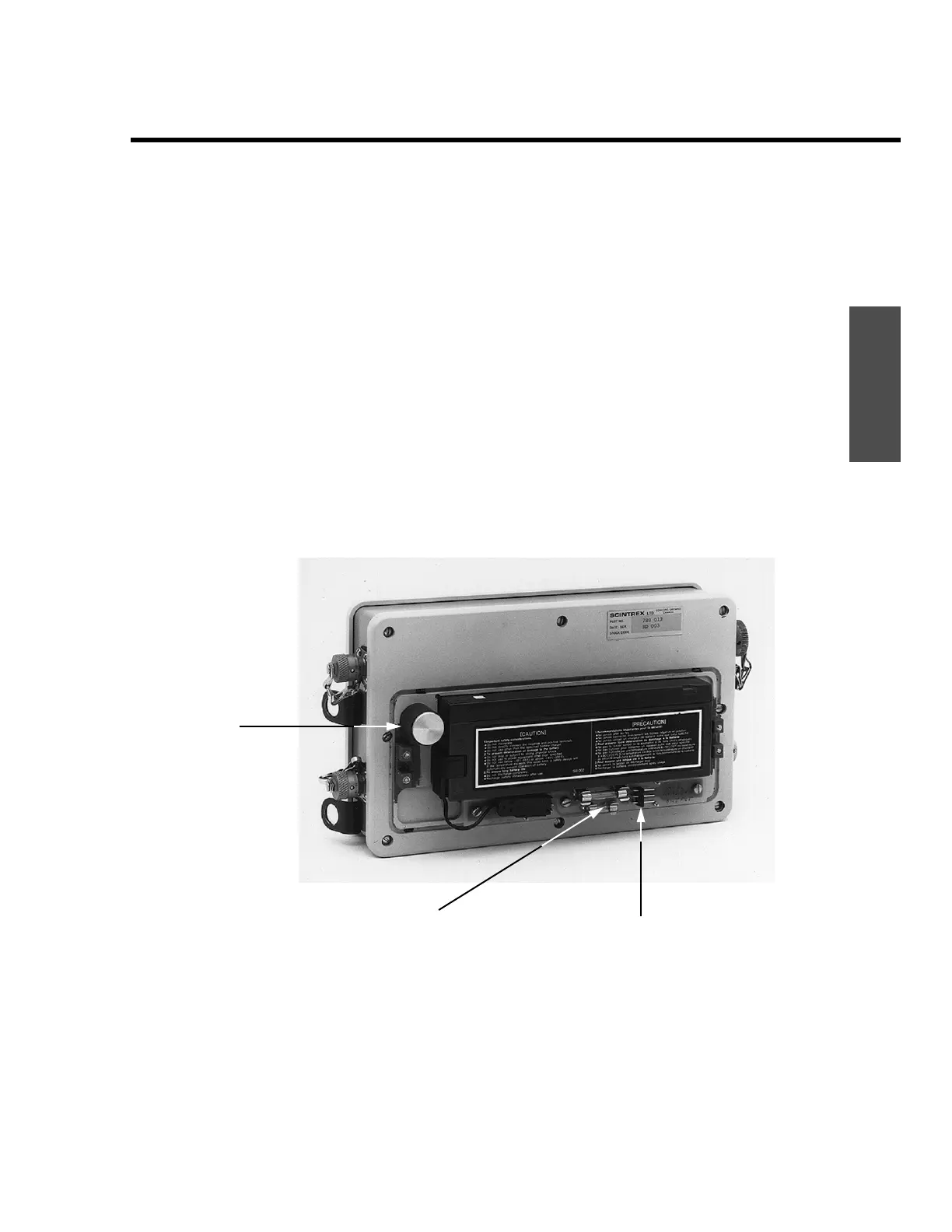

Figure A - 44 Location of the auxiliary charger output connector, fuse
and desiccant cartridge.
Fuse
Auxiliary Charger Output Connector
Desiccant
Cartridge
