SCINTREX ENVI-MAG User Manual

Assembly
ENVI-MAG Manual A2-5
Preparation
Base-station sensor
1. Orient the sensor so that as you look at the bottom of the sensor
(the end with the terminals), the large square plug is at the
9 o’clock position.
2. Use SCINTREX cable number 780 546.
3. Remove the cable hold-down plate by unscrewing the screws at the
2 o’clock and 4 o’clock positions.
4. Connect the black spade-lug on the black wire of the cable to the
terminal at the 11 o’clock position.
5. Connect the red spade-lug on the white wire to the terminal at the
1 o’clock position.
6. Place the cable in the larger slot just above the 3 o’clock position.
7. Re-attach the cable hold-down plate.

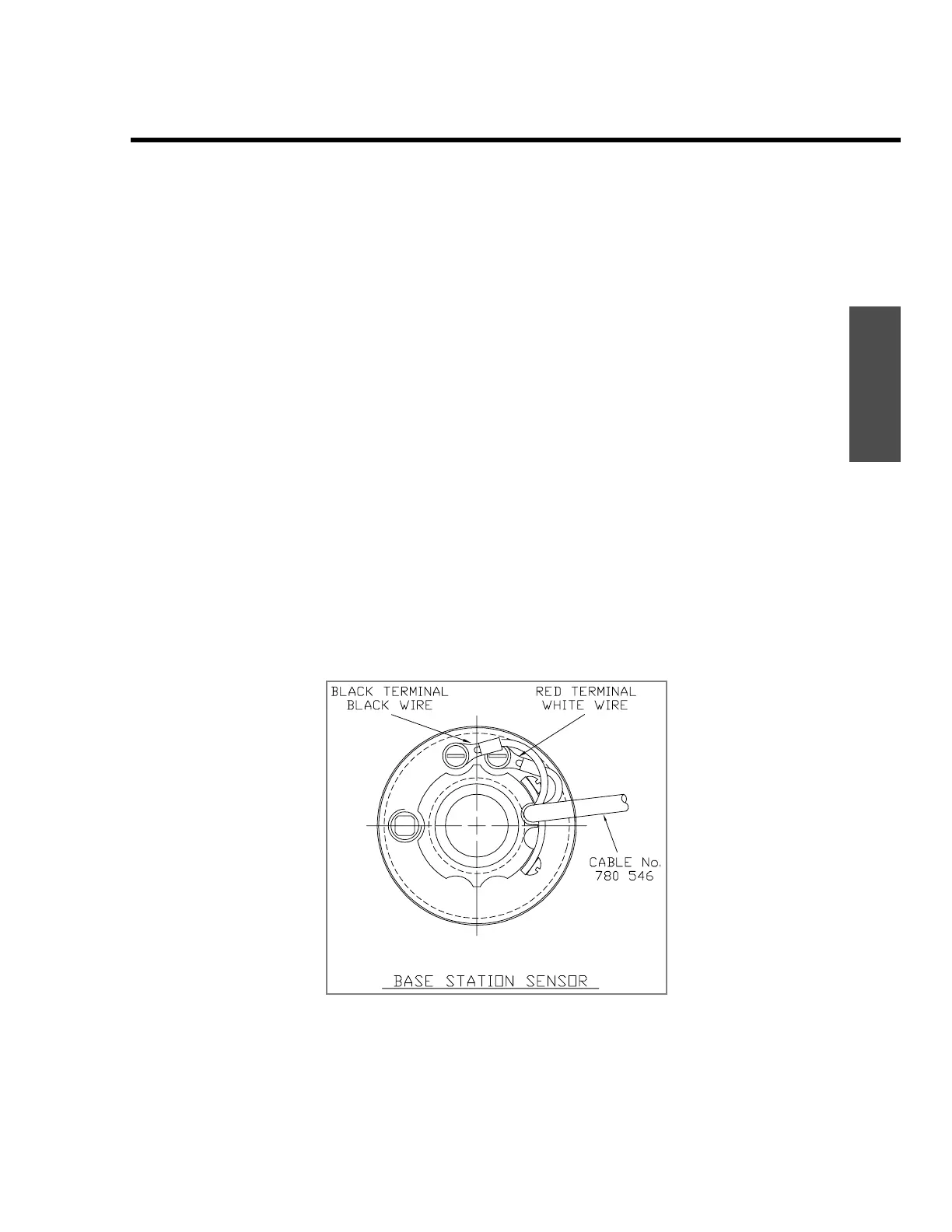

Figure A-4 Base-station sensor cabling
