SCINTREX ENVI-MAG User Manual

Survey do’ s and don’ ts
ENVI-MAG Manual B3-3
Example

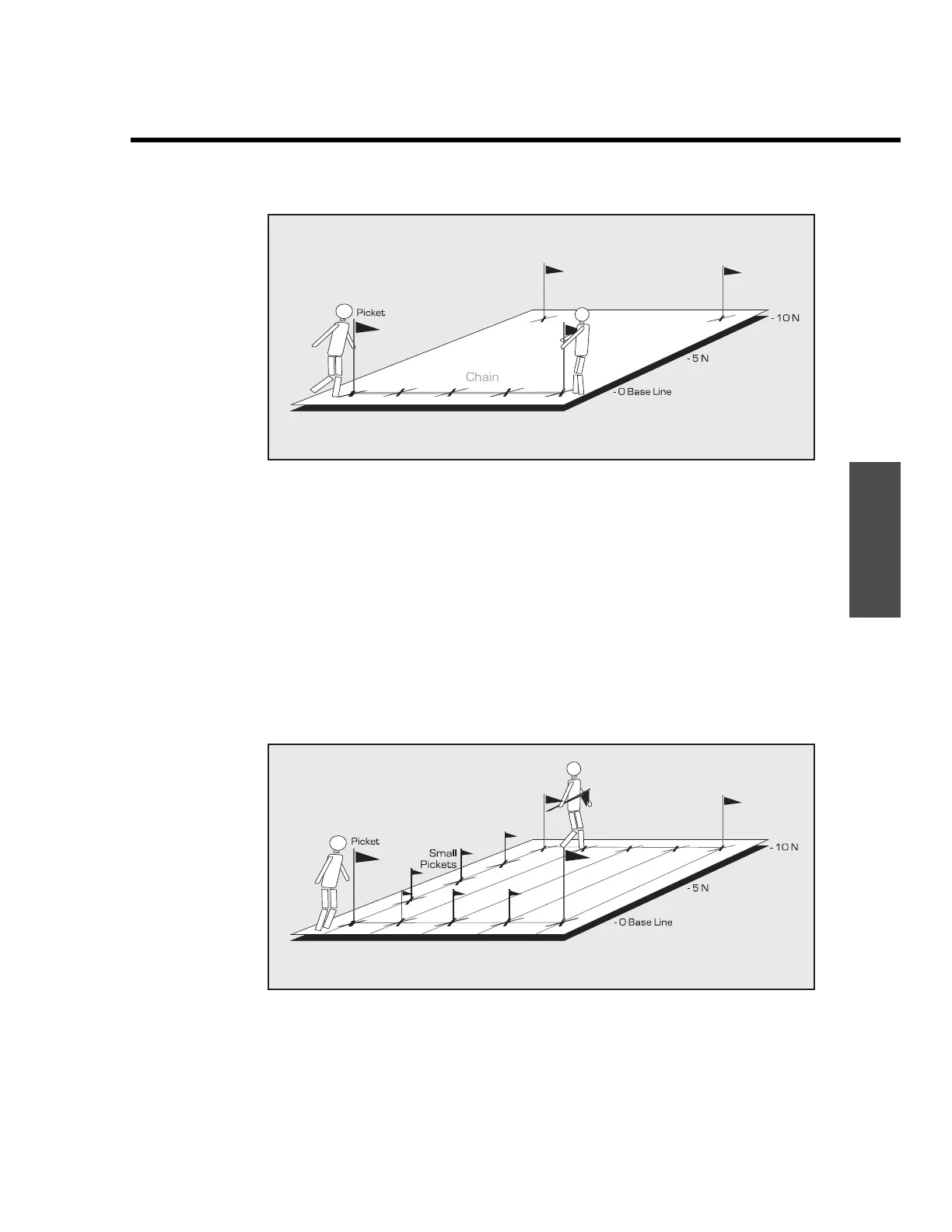

Figure B-19 Base line implementation.
3.
Once the survey lines are marked on the base line, then you should lay in
the survey lines, using wooden stakes or flagging tape to mark you survey
stations. For typical environmental applications, the stations may be at
every 10 metres. You may also choose not to mark every survey line, but
only survey lines every 5 metres. The position of the intermediary survey
lines would be approximated by the operator. This is illustrated in the
following figure (Figure B-20).
Figure B-20 Typical flagged survey line.
- 10 E
- 5 E
- 0
- 0
- 10 E
- 5 E
