Applications
B3-14 ENVI-MAG Manual
The following figure, (Figure B-27), shows the site being surveyed in the standard
WALKMAG, as well as the automatic gradiometer mode.

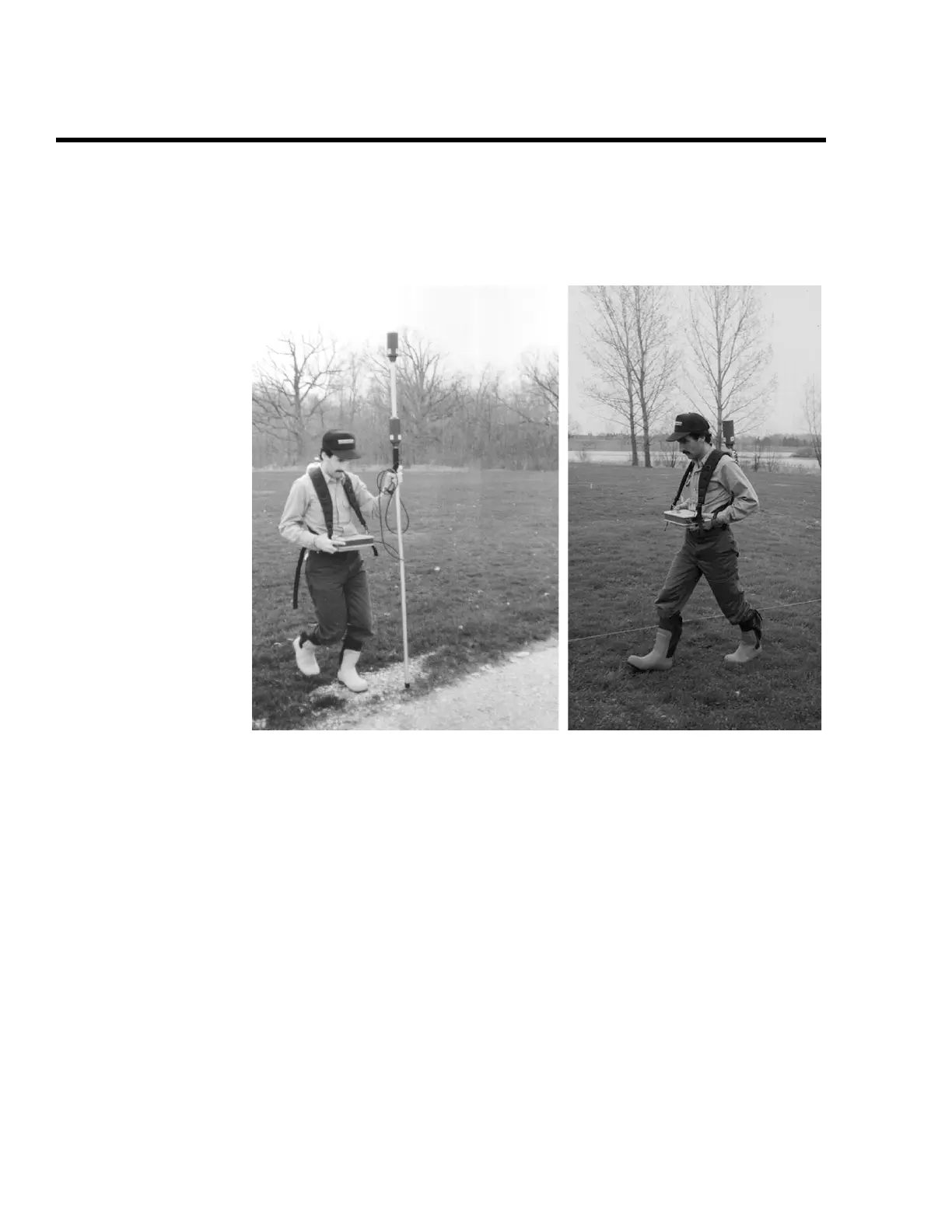

Figure B-27 Surveying the Columbia test site in the gradiometer (left) and
WALKMAG (right) modes.
The results are presented in the following captions in contoured data form for the
total field survey and in profile form for the gradiometer survey. (Figure B-28)
illustrates the contoured total field data and (Figure B-29) the contoured vertical
gradiometer data.
