There are also 16 blank outputs available. These are identi-
fied with an x and can not be reused in a circuit program (in
contrast to flags, for example). The list shows all pro-
grammed blank outputs, and one blank output which is not
yet configured. A blank output, for example, is useful for the
special function “Message texts” (see Chapter 4.4.23), if
only the message text is of significance to a circuit pro-
gram.
2) Analog outputs

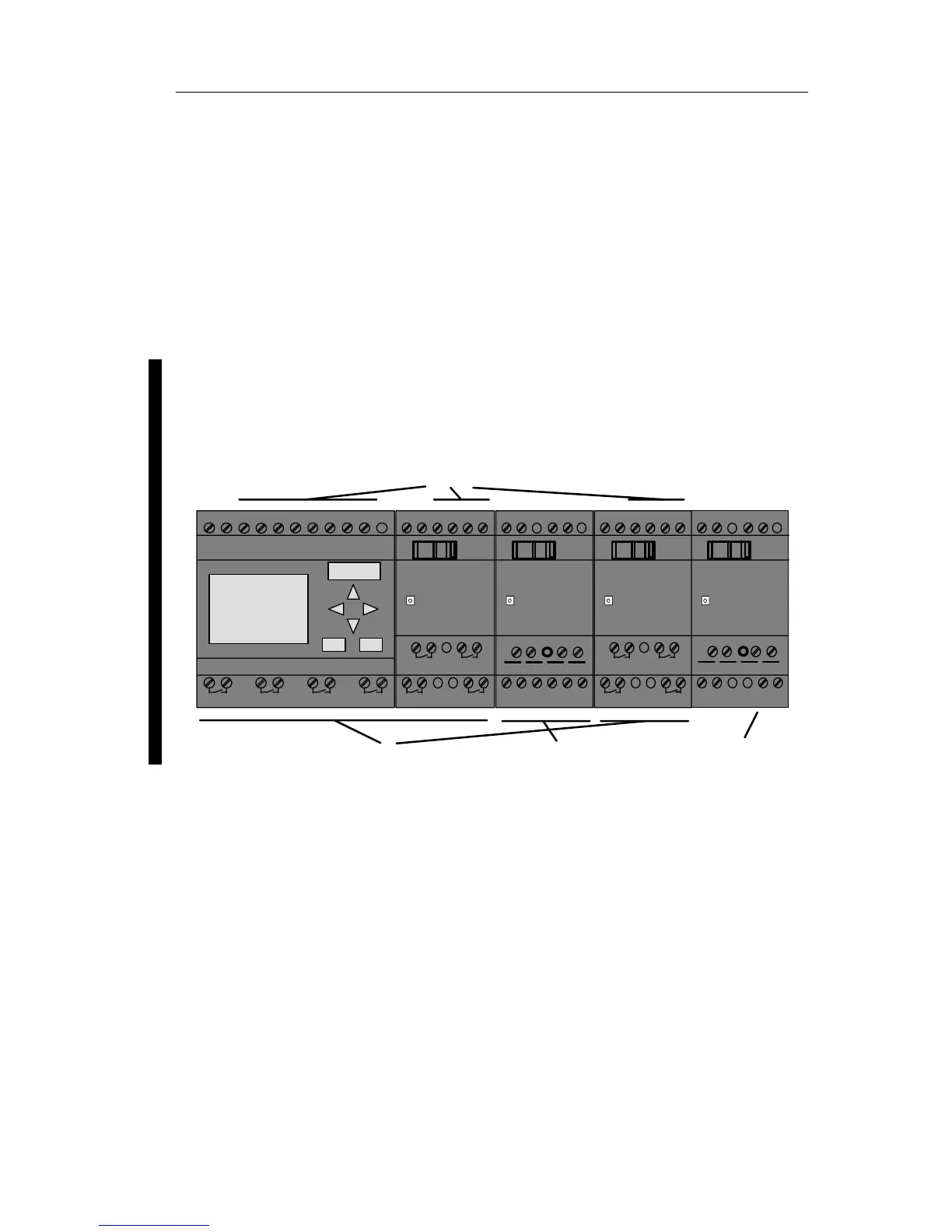

Analog outputs are identified by the letters AQ. Two analog
outputs are available, namely AQ1 and AQ2. An analog
output can only be connected with the analog input of a
function, an analog flag AM or an analog output connector.
L+ M I13I14I15 I16
Q11
Q9
Q12
Q10
RUN/STOP
L+ M
A!3
RUN/STOP
L+MI1I2 I3I4I5I6
Q1 Q2 Q3 Q4
Inputs
Outputs
AI1 AI2 L+ M I9 I10 I11I12
Q7
Q5
Q8
Q6
RUN/STOP
M3U3AI4M4U4
Analog inputs
1 2 1 2
1 2 1 2
1 2 1 2 1 2 1 2
1 2 1 2
1 2 1 2
PE
INPUT 2x (..10V/..20mA)
L+ M L+ M
RUN/STOP
M1V1+
L+ M
PE
OUTPUT 2x (0 ..10V)
M2V2+
Analog outputs
Flag blocks
Flag blocks are identified by the letters M or AM . These
are virtual outputs, which output the value of their inputs.
LOGO! provides 24 digital flags M1 ... M24 and 6 analog
flags AM1 ... AM6.
