2.2.2 Wall-mounting

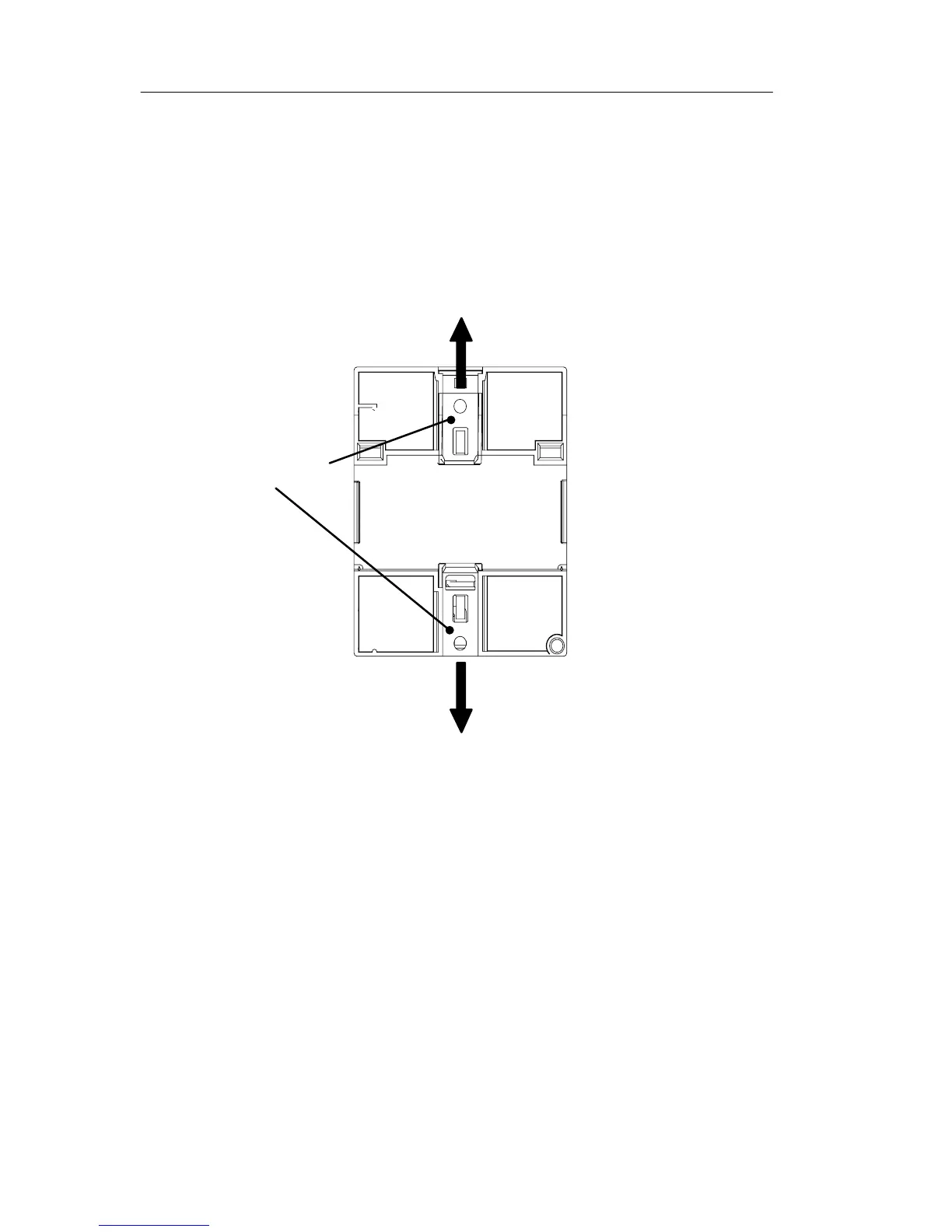

For wall-mounting, first slide the mounting slides on the
rear side of the devices towards the outside. You can now
wall-mount the LOGO! by means of two mounting slides
and two  M4 screws (tightening torque 0.8 to 1.2 N/m).
Mounting slides
