LOGO! Manual
A5E00380835-01
12

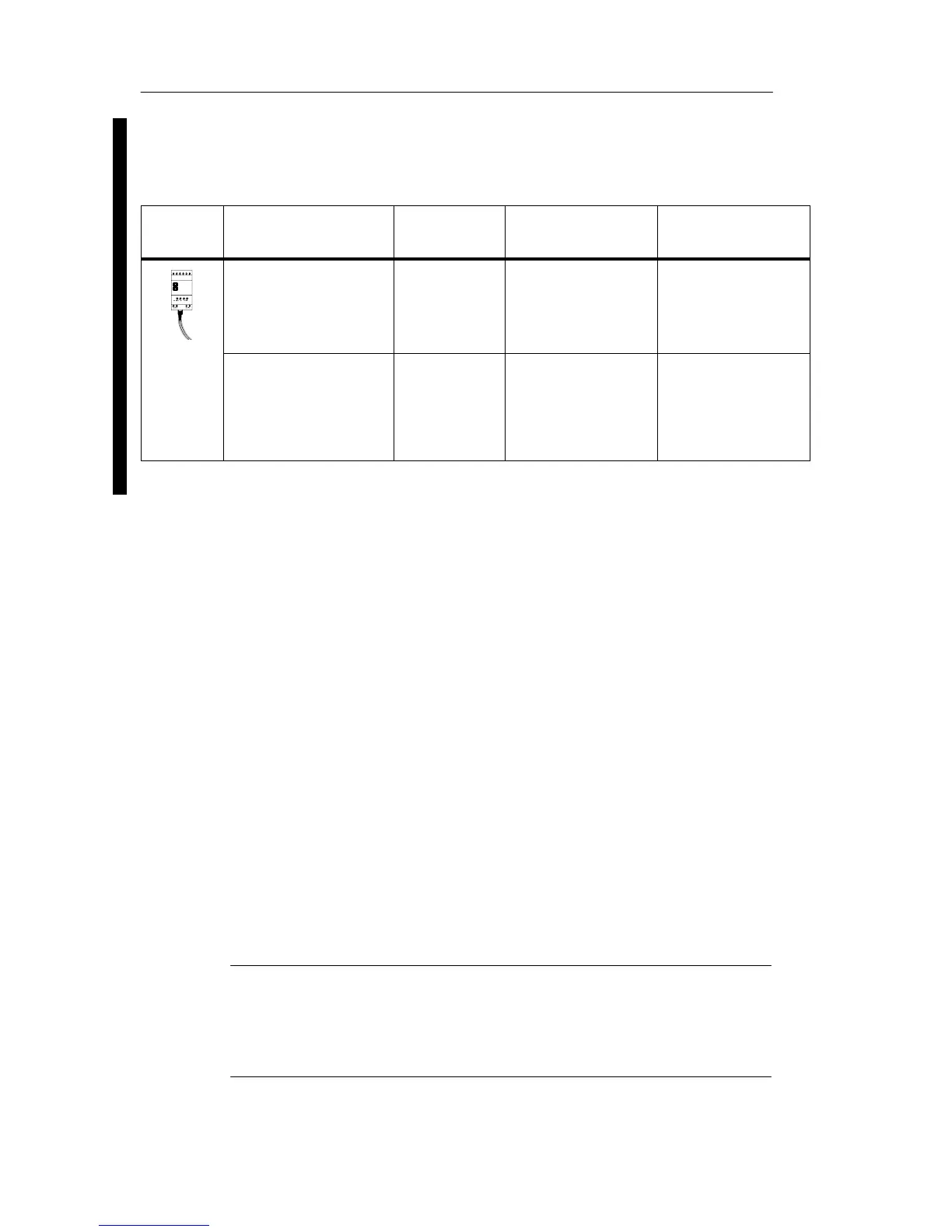

Communication modules
The following communication modules can be connected to
the LOGO!:
Symbol Name Power sup-
ply
Inputs Outputs
LOGO! CM AS Inter-
face
24 V DC 4 virtual digital in-
puts (Q
n
... Q
n+3
of LOGO! Basic)
4 virtual digital
outputs (I
n
... I
n+3
of LOGO! Basic)
LOGO! CM EIB/KNX 24 V AC/DC max. 16 virtual di-
gital inputs (I)
;
max. 8 virtual
analog inputs (AI)
max. 12 virtual di-
gital outputs (Q)
;
max. 2 virtual
analog outputs
(AA)
Certification and approvals
LOGO! is certified to cULus and FM.
cULus Haz. Loc.
Underwriters Laboratories Inc. (UL) to
– UL 508 (Industrial Control Equipment)
– CSA C22.2 No. 142 (Process Control Equipment)
– UL 1604 (Hazardous Location)
– CSA-213 (Hazardous Location)
APPROVED for use in
Class I, Division 2, Group A, B, C, D Tx
Class I, Zone 2, Group IIC Tx
FM Approval
Factory Mutual Research (FM) to
Approval Standard Class Number 3611, 3600, 3810
APPROVED for use in
Class I, Division 2, Group A, B, C, D Tx
Class I, Zone 2, Group IIC Tx
Note
You will find current approvals on the rating plate of the
relevant module.
