2.3.3 Connecting outputs
LOGO! ...R...
The LOGO! ...R... version is equipped with relay outputs.
The potential of the relay contacts is isolated from the
power supply and the inputs.
Requirements for relay outputs
You can connect various loads to the outputs, e.g. lamps,
fluorescent lamps, motors, contactor relays etc. For
information on the properties required for the loads
connected to the LOGO! ...R..., refer to Appendix A.
Connecting

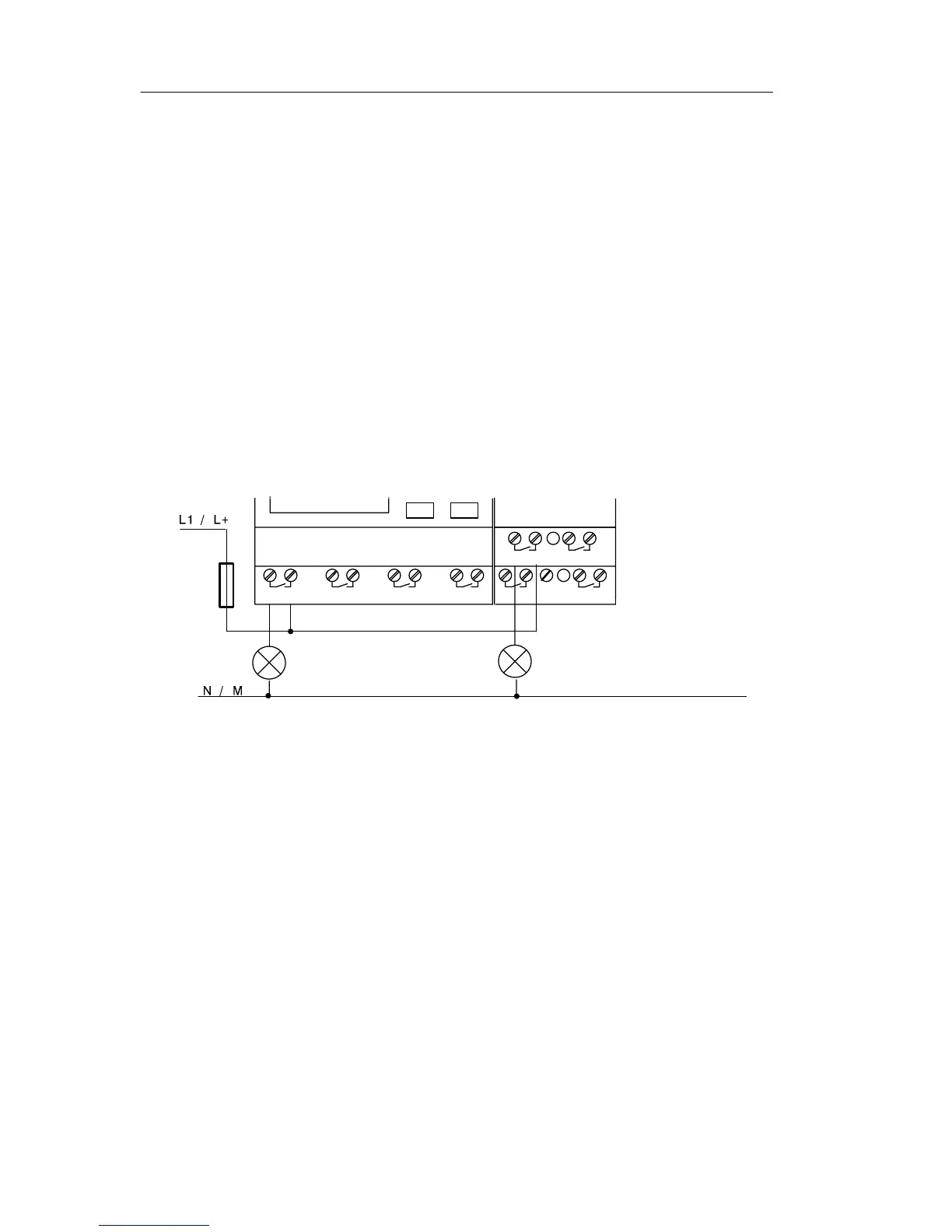

This is how you connect the load to LOGO! ...R...:
Protection with automatic circuit-breaker, max. 16 A, characteristics
B16, e.g.: Power circuit-breaker 5SX2 116-6 (if required)
DM8...R
1 2
Q1 Q2
1 2
Q5 Q6
1 2
1 2
Load
Load
LOGO! installation and wirin
g
