Parameter p (number of decimals)
Applies only to the values displayed in a message text.

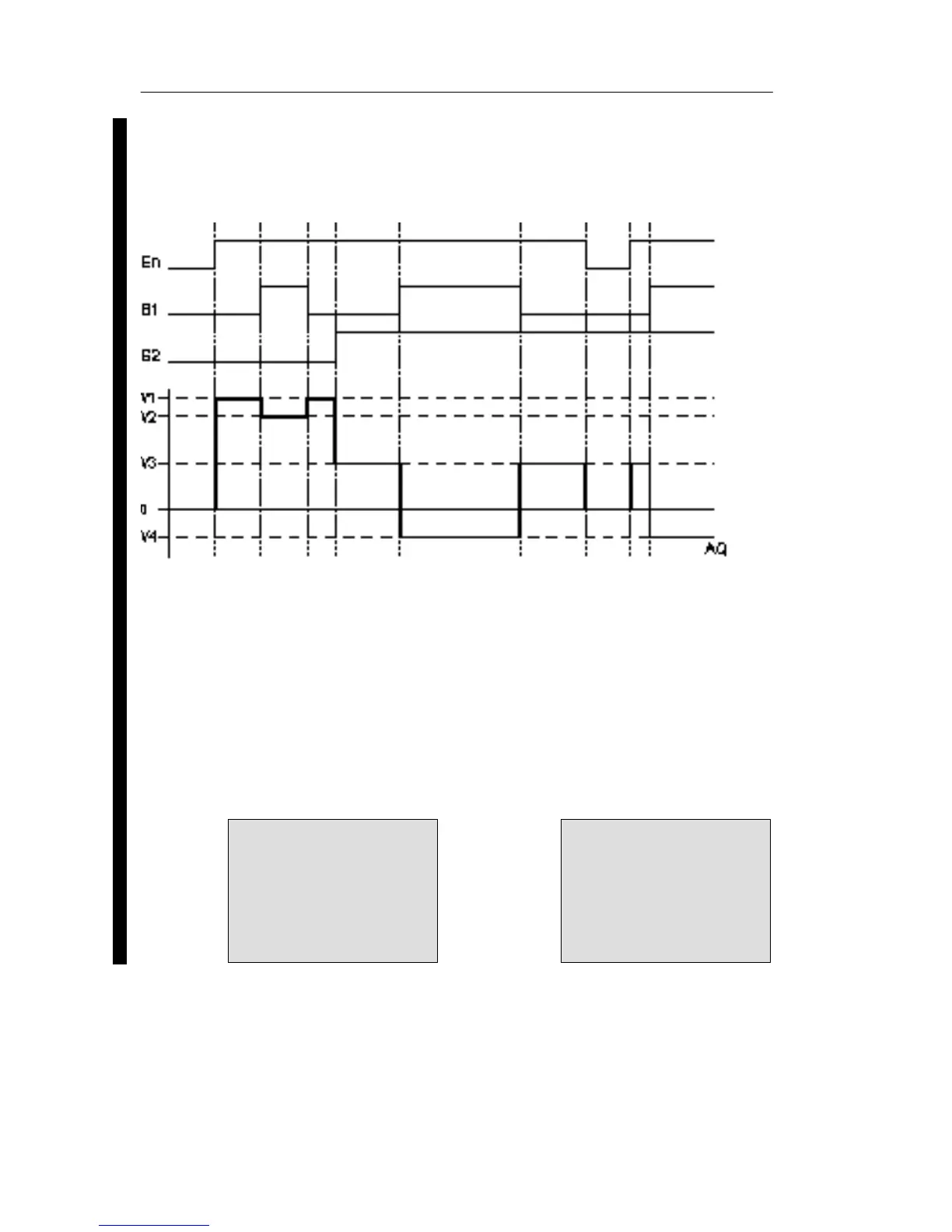

Timing diagram
Functional description
If input En is set, then the function issues one of 4 possible
analog values V1 to V4 at the output AQ, depending on the
value of S1 and S2.
If the input En is not set, then the function issues the
analog value 0 at output AQ.
Preset of the Par parameter
View in programming mode (example):
B3 1+/
V1 =+04000
V2 =–02000
B3 2+/
V3 !B020
V4 !B021
p=0
Press
 
LOGO! functions
