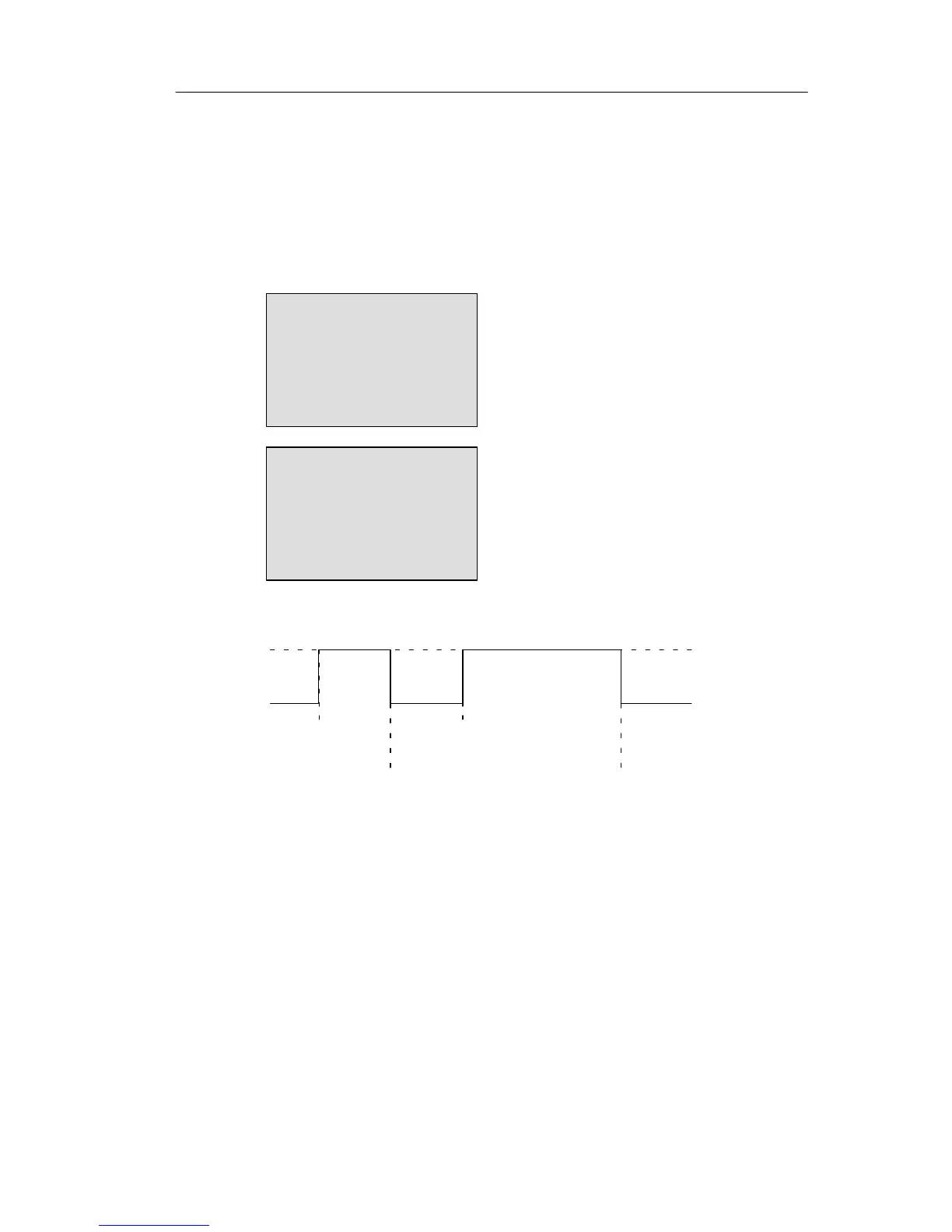

Sample configuration
The output of a LOGO! is to be set annually on March 1,
reset on April 4, set again on July 7, and reset again on
November 19. You need to configure two yearly timers with
corresponding on-times. The outputs are then logically
linked by means of an OR block
B1 +
MM–DD
On =03–01
Off=04–04
On-time March 1
Off-time April 4
B2 +
MM–DD
On =07–07
Off=11–19
In addition:
On-time July 7
Off-time November 19
Result
O
n
Off
March 1
at 00:00 h
April 4
at 00:00 h
B1
B2
July 7
at 00:00 h
November 19
at 00:00 h
