Siemens LOGO! - Connecting the EIB Bus

LOGO! Manual
A5E00380835-01
42

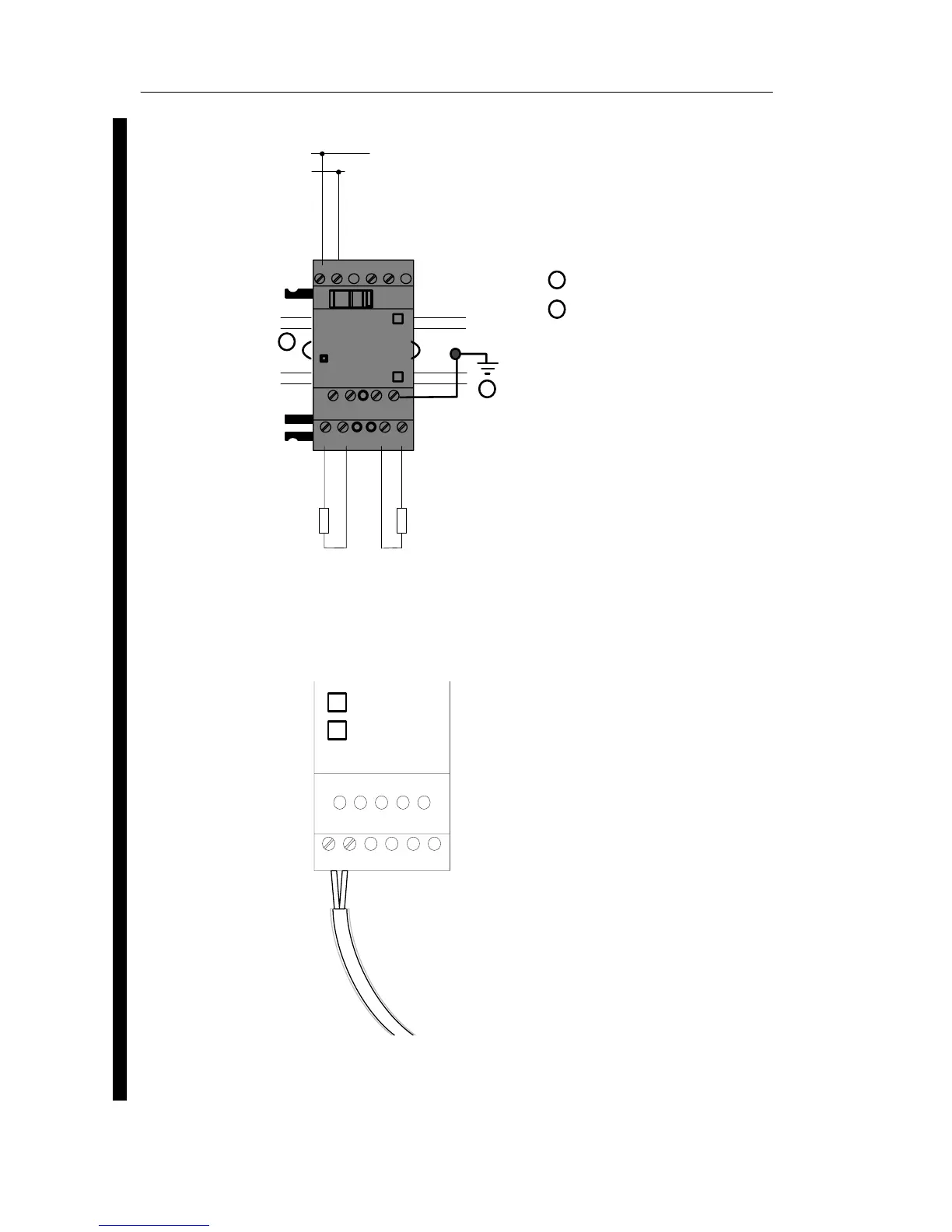

LOGO! AM 2 AQ
1 Earth
DIN rail
2
V1+
V2+
RUN/STOP
M2
M1
L
+
M
L+ M
L+ M
OUTPUT 2x(0..10V)
PE
0-10 V0-10 V
RR
2
1
V1, V2: 0 - 10 V DC
R: 5 kW
2.3.4 Connecting the EIB bus
The connection is carried out via the two-pole screw termi-
nal (+ and –).
+ – EIB
Prog. O
RUN/STOP
BUS
Only the red-black core pair is used, the white-yellow core
pair is not connected.
LOGO! installation and wirin
g
