4.4.17 Analog differential trigger
Short description
The output is set and reset depending on a configurable
threshold and a differential value.

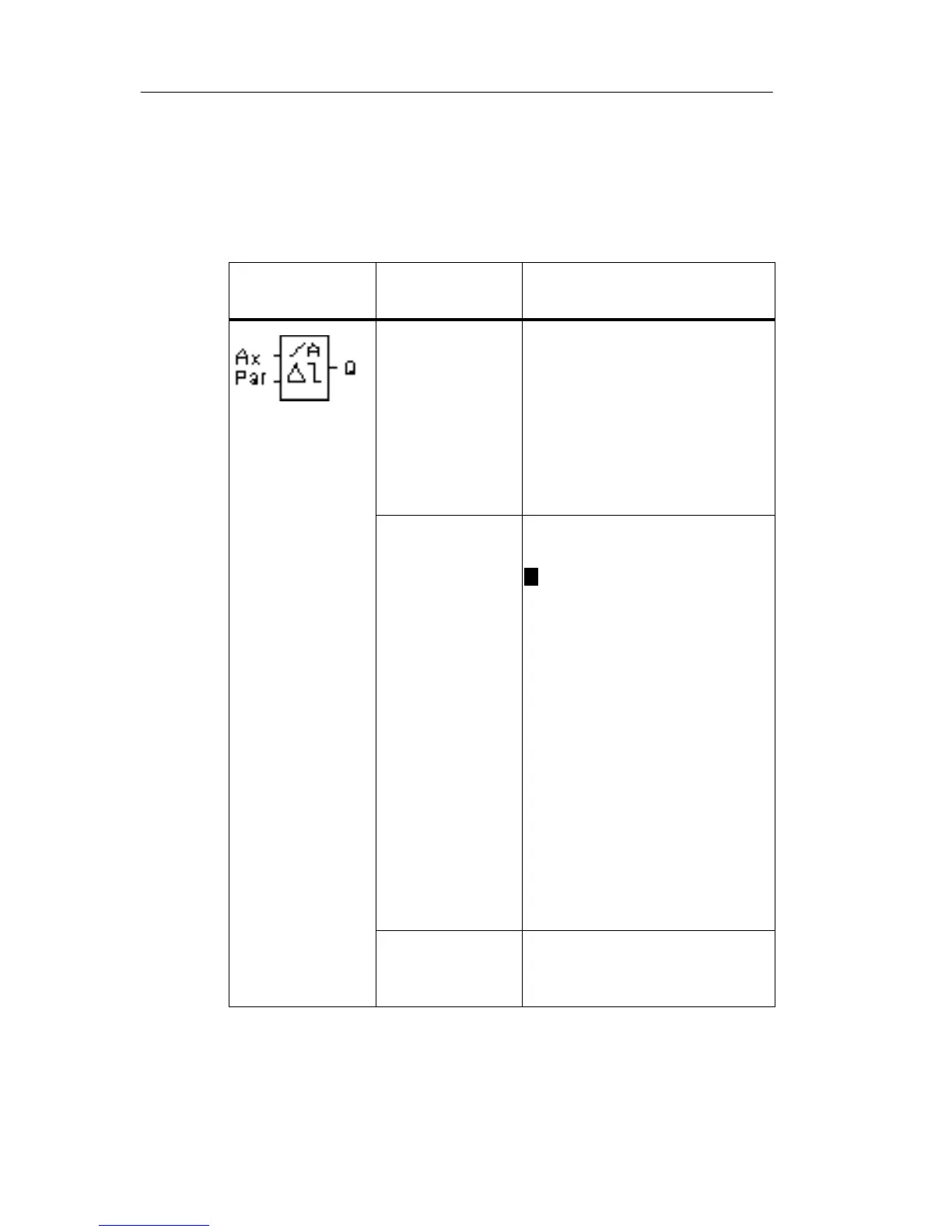

Symbol in
LOGO!
Wiring Description
Input Ax You apply the analog signal
to be analyzed at input Ax.
Use the analog inputs
AI1...AI8
(
*
)
, the analog
flags AM1...AM6, the block
number of a function with
analog output, or the analog
outputs AQ1 and AQ2.
Parameter A: Gain
Range of values:
10.00
B: Zero offset
Range of values:
10.000
On: On/Off threshold
Range of values:
20.000
n: Differential value for
calculating the off
parameter
Range of values:
20.000
p: Number of decimals
Range of values:
0, 1, 2, 3
Output Q Q is set or reset, depending
on the threshold and differ-
ence values.
* AI1...AI8: 0...10 V corresponds with 0...1000 (internal value).
