Siemens LOGO! - LOGO! with Solid-State Outputs; Requirements for Solid-State Outputs

41
LOGO! Manual
A5E00380835-01
LOGO! with solid-state outputs
LOGO! versions with solid-state outputs can be identified
by the fact that the letter R is missing from their type name.
The outputs are short circuit-proof and overload-proof. An
auxiliary load voltage supply is not necessary, because
LOGO! supplies the load voltage.
Requirements for solid-state outputs
The load connected to LOGO! must have the following
characteristics:
 The maximum switched current is 0.3 A per output.

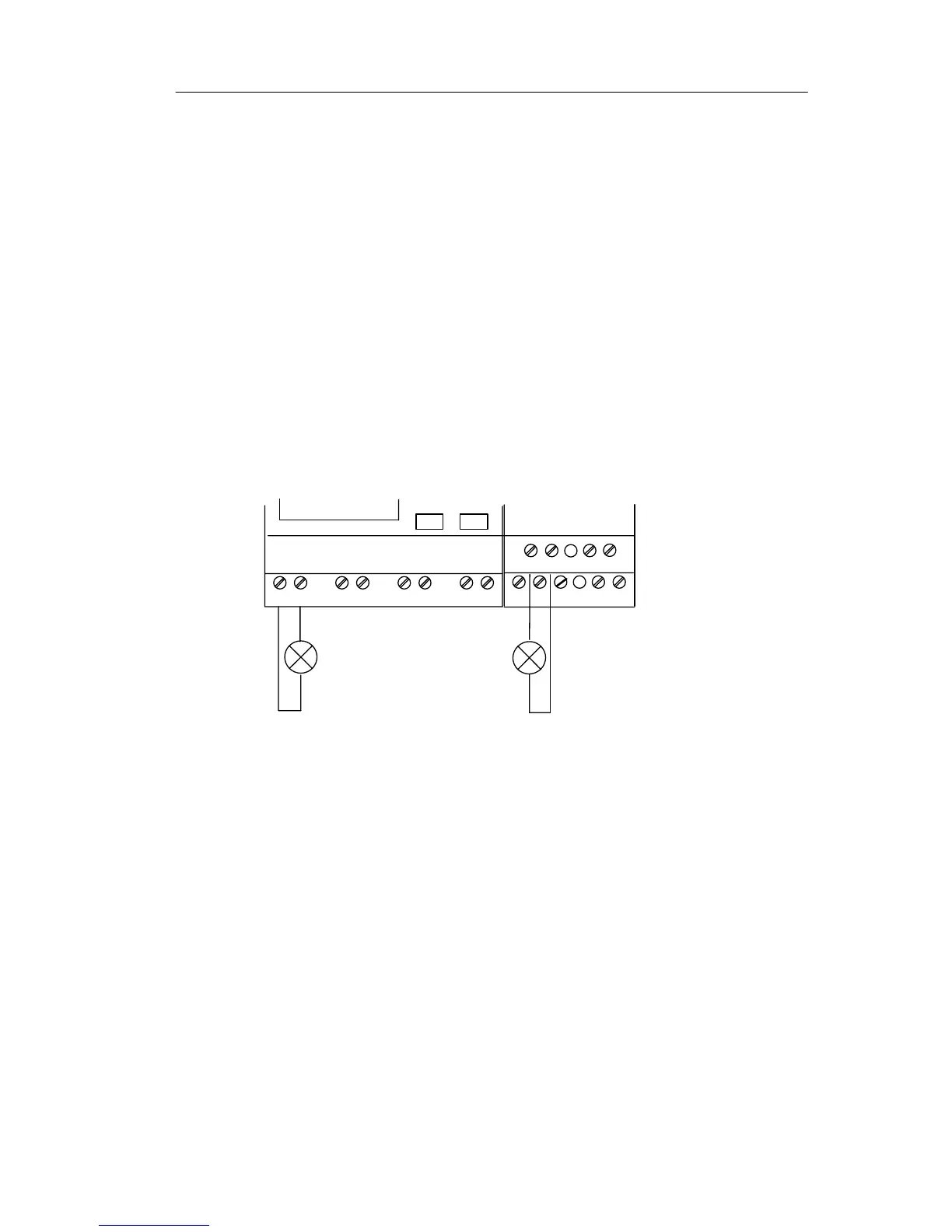

Connecting
This is how you connect the load to a LOGO! with
solid-state outputs:
Load: 24 V DC, 0.3 A max.
DM8 24
Q1 Q2MM
Q5 Q6MM
Load
Load
LOGO! installation and wirin
g
