29
LOGO! Manual
A5E00380835-01

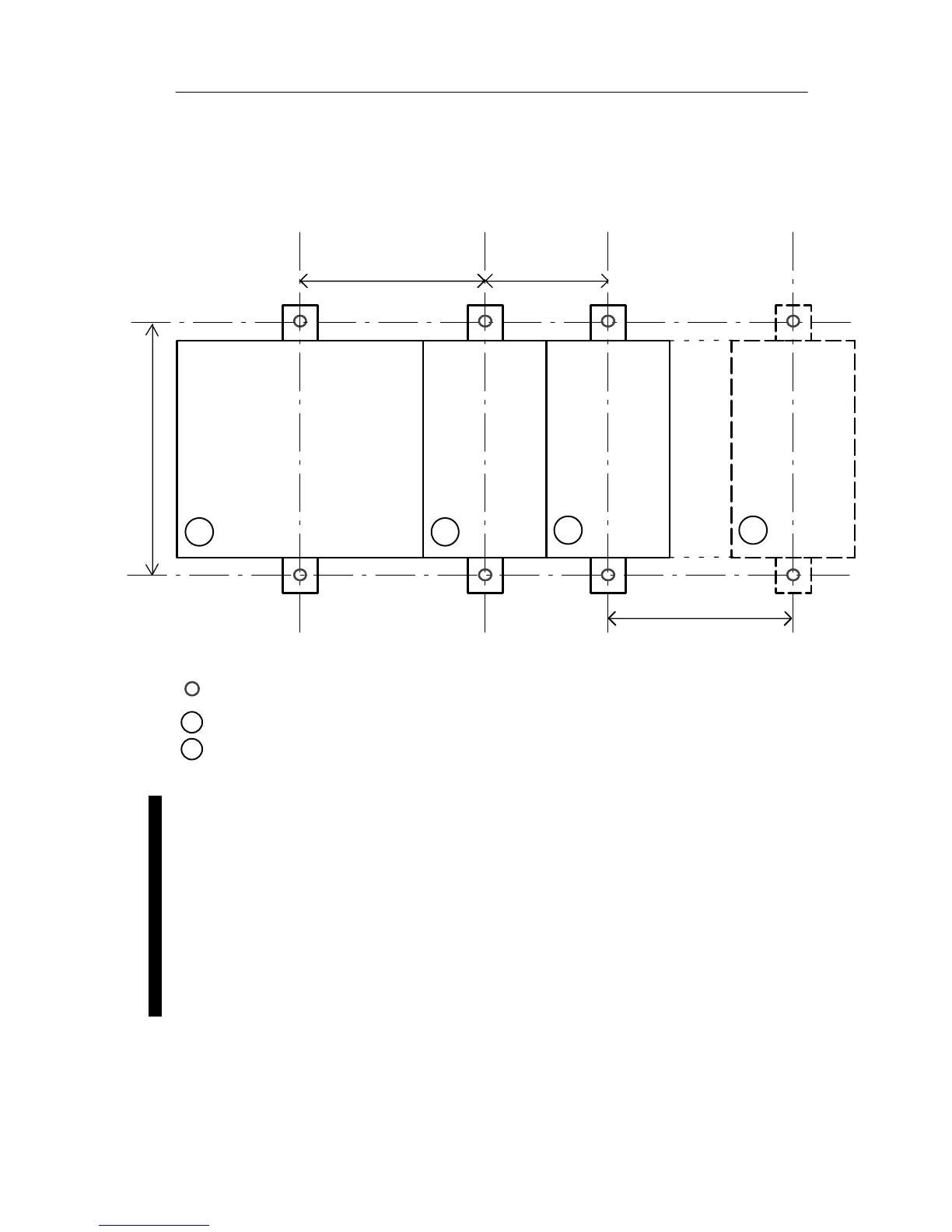

Drilling template for wall-mounting
Before you can wall-mount the LOGO!, you need to drill
holes using the template shown below.
53.5 +/– 0.2 35.5 +/– 0.2
n x 35.5 +/– 0.2
98 +/– 0.3
Bore hole for M4 screw
Tightening torque 0.8 to 1.2 N/m
LOGO! Basic
LOGO! expansion module
1
2
1
2
All dimensions in mm
2 2
2.2.3 Labeling LOGO!
The gray rectangular areas on the modules are intended
for labeling the LOGO! modules.
In the case of expansion modules, you can use the gray
areas for labeling the inputs and outputs, for example. In
this connection, you can enter a delta factor of +8 for the
inputs or +4 for the outputs if the basic module already has
8 inputs or 4 outputs.
LOGO! installation and wirin
