4.2.4 NAND with edge evaluation

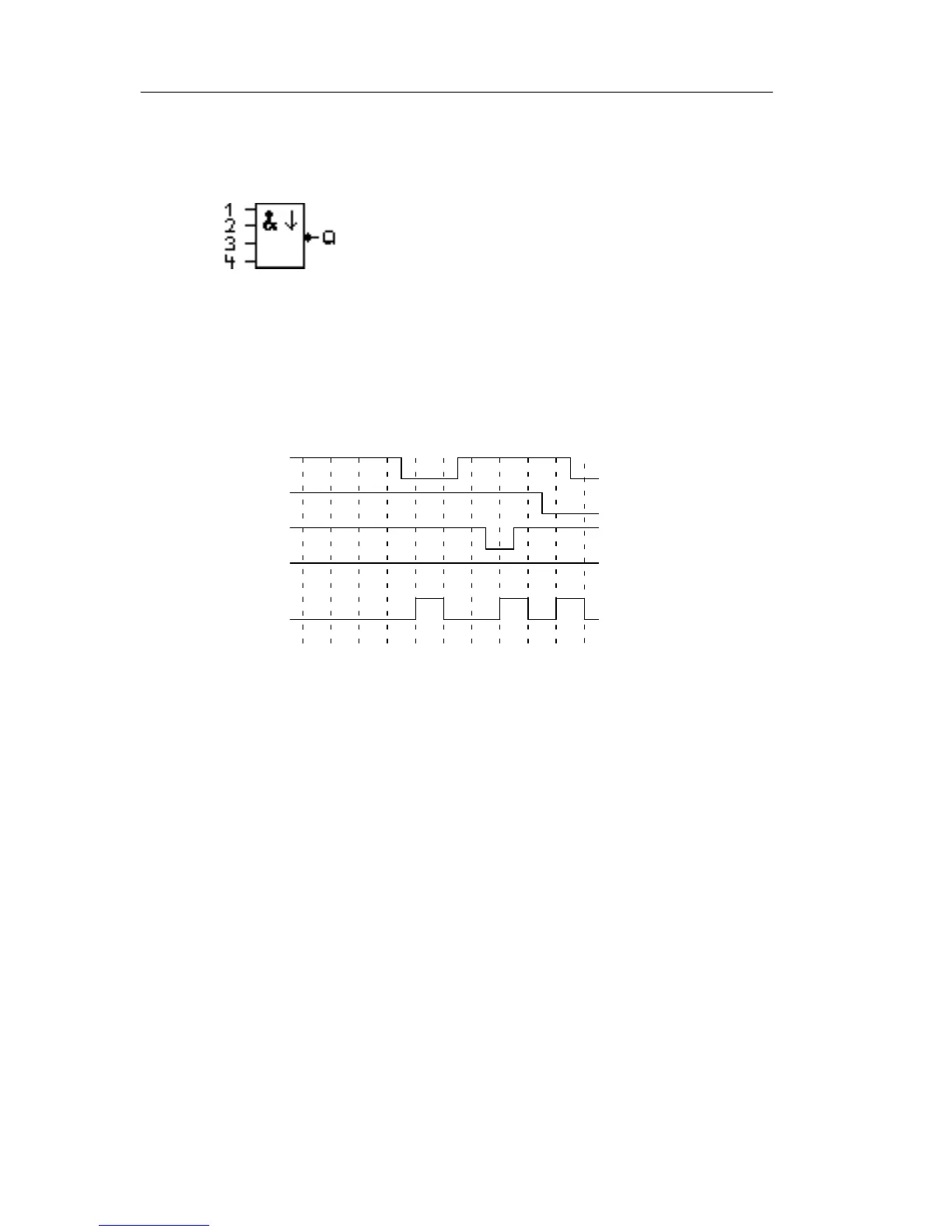

Symbol in LOGO!:
The output status of the NAND with edge evaluation is only
1 if at least one input is 0 and if all inputs were 1 in the
previous cycle.
At an unused block input (x): x = 1.
Timing diagram for the NAND with edge evaluation
1
Cycle
3
Q
2
12345678
9
10
4
LOGO! functions
