Applications Guide
Network Busy Lamp Field (BLF)
Strata CIX Programming Vol.1 12/09 A-13
Applications Guide
Network Busy Lamp Field (BLF)
Network BLF is an indication on the CIX attendant console and digital telephones that an extension is
Busy, Idle or in DND over different nodes. The Primary CIX can read the BLF information from the remote
CIXs.
In order to use Network BLF, the CIX attendant console and digital telephones must have access to each
CIX by LAN/WAN and requires the IP addresses of each node or CIX. The figure below is a BLF/DSS
networking flow diagram. It shows you the types of connections required between the BLF servers, the
Strata CIXs and the CIX attendant console.

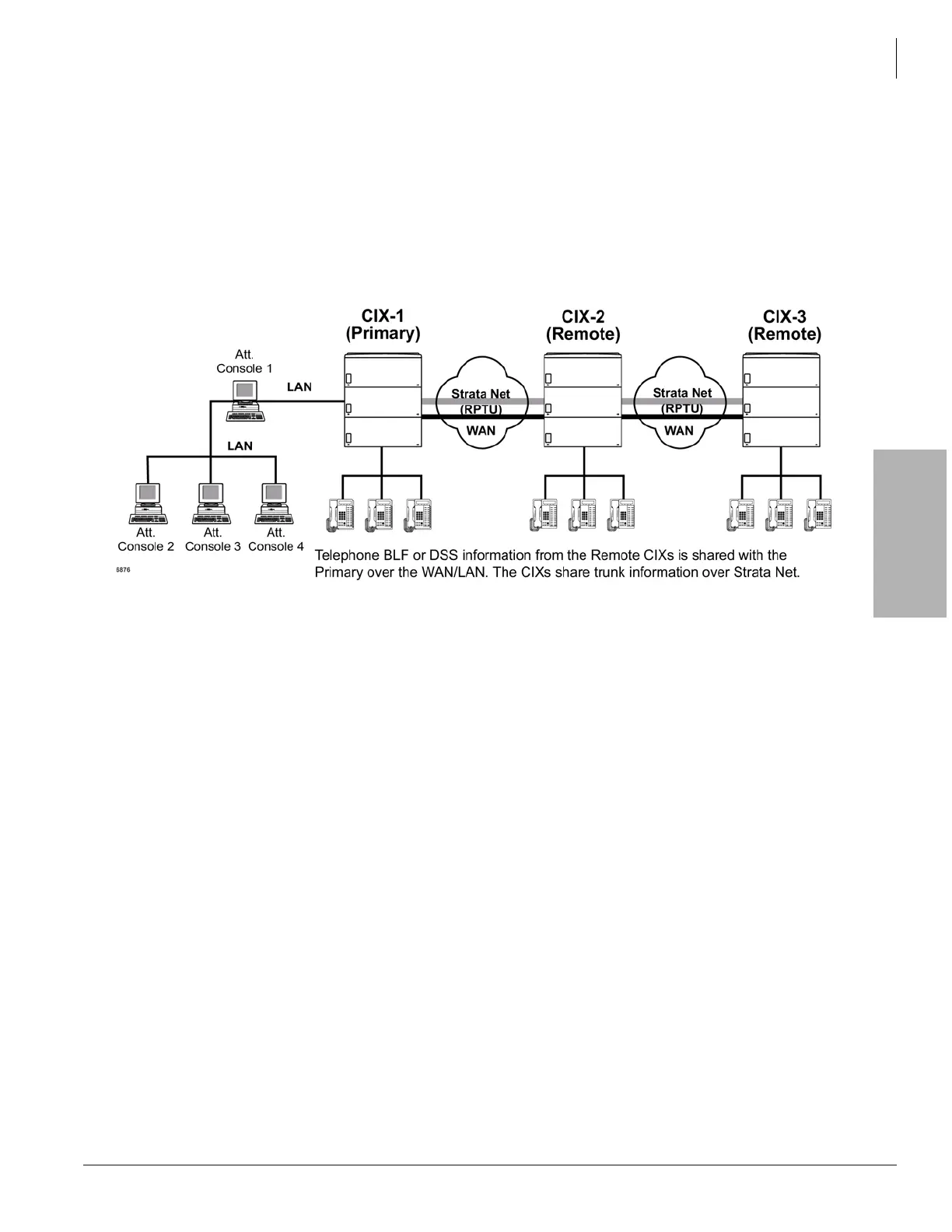

Figure A-2 BLF/DSS Networking
Note The Node ID must be independent of the Station DNs for Network BLF to work.
